Z-23 for Turf Care

(4 Reviews)
Get Quote

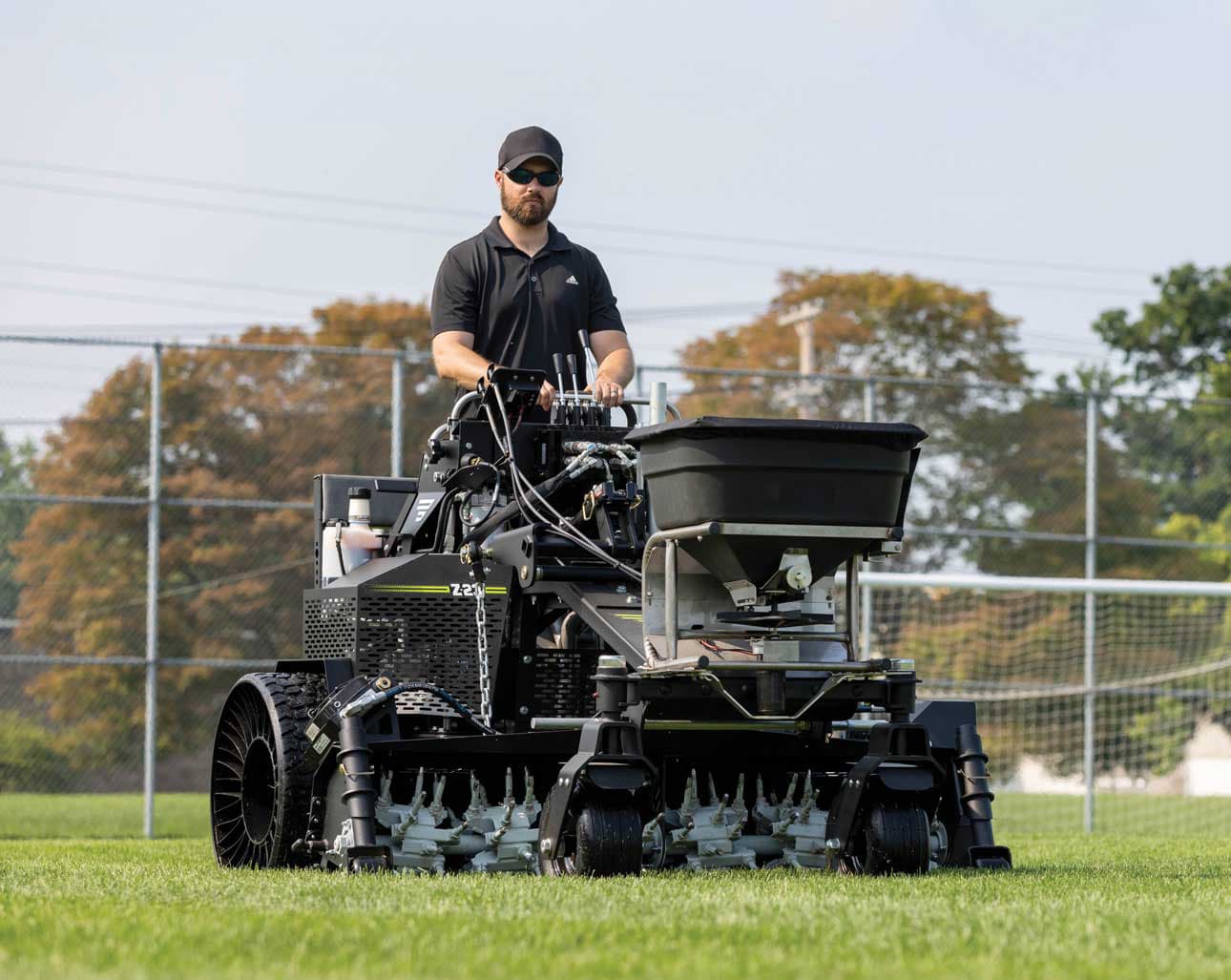

Z-23 for sports turf being used on turf/grass.

Expand Your Turf Care Versatility

Now available with mid-mount hydraulically-controlled attachments, the Z-23 offers you and your crew greater versatility to manage a wide variety of aspects of turf care with just one machine. Aerate with our AERA-Vator attachment and precisely follow contours of the field without lifting the attachment. Staying engaged with the ground allows the AERA-Vator to make in-ground turns, making it possible to aerate the field faster than ever before.

World-Class Results for Every Field

Whether you care for baseball or softball fields, trust the Force’s Z-23 to keep your sports turf in peak condition. The Z-23 features multiple attachments that help improve the health of the turfgrass. Transition from infield maintenance to turfgrass care even during game season using our selection of easy-to-use, toolless quick-swap attachments. Cut slits into the ground with our Slit Aerator to relieve soil compaction. Leaving these slits in the ground brings more water, oxygen, and nutrients to the grassroots to grow healthier turf. Depending on the needs of your soil, our Plug Aerator or AERA-Vator options are also available. Prep infields and outfields for play the same day with just one machine.

Force Advantages

  • Size Matters — Small aerators can take ages to finish aerating an entire sports field. Offering the largest and widest aerators on the market, the Z-23 lets you thoroughly aerate and cover nearly 3.5 acres of ground per hour.
  • Start to Finish — The Z-23’s wide assortment of available attachments empower you and your crew to tackle any size or type of turfcare job—from rough grade, through installation, and on to regular maintenance—using one machine.
  • Follow the Curves — Whether you’re edging or aerating, the Z-23 ensures you stay engaged with the ground at all times. Make in-ground turns and follow the contours and curves of the different landscapes you work on.

Attachments

Force Seed & Fertilizer Spreader
Holds 120 lbs. of material and has an adjustable spread pattern from 4 to 25 feet.
Scarifiers
The Ripping Teeth make easy work of extreme hardpan and vegetation outside of the field.
Force Versiblade Mini-Box
The VersiBlade Mini-Box gives the Z-23 extra earth-moving muscle and unmatched versatility.
Multi-Function Rake
Can be pitched vertically to back blade material from high areas and fill into low areas.
Force Plug/Core Aerator
The available 48″ plug aerator for the Force Z-23, mounted to the mid-mount hydraulic lift system, enables 115,000 sq. ft. per hour aerating output.
Force Slit Aerator
The Slit Aerator is an efficient tool designed to enhance soil health by creating slits in the surface up to 2 inches deep, making it ideal for overseeding and relieving compaction.
Force Rear Soil Finisher
The rear soil finisher attachment will take your soil conditioning and landscape finishing capabilities to a whole new level.
Force Rear Scoop
The scoop can carry up to 300 pounds of mulch or soil and place it right where you want it.
Aera-Vator
Our hydraulic AERA-Vator is mounted on a front swinging hitch, allowing in-ground turns up to 15°.
Pull-Behind Cultipacker
The Rear-Mount Cultipacker for the Z-23 gives you complete control over your seed-to-soil contact.
Scarifiers
The Ripping Teeth make easy work of extreme hardpan and vegetation outside of the field.
Force Versiblade Mini-Box
The VersiBlade Mini-Box gives the Z-23 extra earth-moving muscle and unmatched versatility.
Multi-Function Rake
Can be pitched vertically to back blade material from high areas and fill into low areas.
Force Plug/Core Aerator
The available 48″ plug aerator for the Force Z-23, mounted to the mid-mount hydraulic lift system, enables 115,000 sq. ft. per hour aerating output.
Force Slit Aerator
The Slit Aerator is an efficient tool designed to enhance soil health by creating slits in the surface up to 2 inches deep, making it ideal for overseeding and relieving compaction.
Aera-Vator
Our hydraulic AERA-Vator is mounted on a front swinging hitch, allowing in-ground turns up to 15°.
Force Rear Soil Finisher
The rear soil finisher attachment will take your soil conditioning and landscape finishing capabilities to a whole new level.
Force Rear Scoop
The scoop can carry up to 300 pounds of mulch or soil and place it right where you want it.
Pull-Behind Cultipacker
The Rear-Mount Cultipacker for the Z-23 gives you complete control over your seed-to-soil contact.
Force Seed & Fertilizer Spreader
Holds 120 lbs. of material and has an adjustable spread pattern from 4 to 25 feet.

Features

Responsive Variable Force Technology (RVF)

Located at the mid underbelly of the ABI Force, the patented RVF Technology hydraulically controls mid-mounted ground-engaging attachments with lift, variable down pressure, and pitch adjustments.

Zero-Turn Functionality

The zero-turn capability of the Z-23 means that you can get in tight spots, around edges, and closer to tree lines than with a skid steer or other heavier duty equipment. For infield grooming and seedbed prep, you want that light footprint and maximized nimbleness.

Speed Lock + Depth Lock

The Depth-lock feature prevents mid-mount attachments from going any deeper into the infield surface than intended. This feature makes it easy to ensure consistent preparation from field to field and operator to operator. The Speed-lock feature prevents less experienced users from operating the ABI Force faster than a facility manager establishes. This feature provides improved safety and ease of use for all operators.

Total Control

The patented spring system allows for up to 1,000 lbs of down pressure, but builds in forgiveness, so the Z-23 can power through some of the toughest jobs. With unparalleled pitch-control and hydraulic rear lift control, the ground engagement components mimic the movement of the machine so you can get finishing, feathering, and sifting results.

Electronic Fuel Injected (EFI) Engine

Each Z-23 comes equipped with a 25HP electronic fuel injection engine standard. An EFI system utilizes advanced computer controls teamed with a high-pressure fuel delivery system to provide peak power and fuel efficiency. The Force now starts like a car with no carburetor issues, has increased fuel efficiency, and starts easily in the cold!

Beltless Hydrostatic Drive System

Typically, machinery of this size runs off a Hydraulic Drive System geared to a belt and pulley drive shaft. The lifetime of a belt can be unpredictable as belts frequently break. Each Z-23 is plumbed standard with Dual Stacked HydroGear Variable Displacement Pumps and Fixed Displacement Wheel Motors, avoiding the need for belts entirely.

Heavy-Duty 2-Stage Air Filter

Every ABI Force Z-23 comes standard with a Heavy Duty 2-Stage Cyclonic Canister Air Filtration System. A 2-stage filtration system makes sure that your engine pulls clean air, acting as your engine’s shield in dusty conditions. Keep the filter clean to see improved engine performance, fuel efficiency, and extended engine life

Request A Quote

Request a quote and an ABI Product Specialist will help you find the right
attachment for your equipment.

No obligation. We never sell your data.

Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)

Specifications

Force for Turf Care

Engine
PowerKohler® Command Pro 25 hp EFI V-Twin OHV (17.2kW) | 747cc | 4-Cycle Air Cooled | Gasoline | Model ECH740
Air FilterHeavy Duty 2-Stage Cyclonic canister air filtration system
Fuel6 gallon/22.7125 liter capacity with fuel gauge | Unleaded gasoline
Electrical20 amp Regulated alternator | 350 CCA at 0 degrees - battery

Drive System
DriveHydrostatic zero-turn | HydroGear variable displacement pumps & fixed displacement wheel motors
SpeedForward 0-10 mph; Reverse 0-4 mph
BrakingDynamic braking via hydrostatic transmission | Integrated parking brake

Chassis
Tires & WheelsFront (Air): 13 x 6.50-6, Rear: 24 x 12.00-12 (Air or Optional Tweel)
Frame ConstructionRugged tube steel
Mid-Mount SystemIndependent hydraulic lift & pitch controls with adjustable & lockable spring-loaded down force with Responsive Variable Force (RVF) technology.
Rear-Mount SystemHydraulic lift control with articulation
Towing Capacity1-1/4" receiver - 2,000 lbs. towing capacity at slow speed on flat and open ground only! Never tow anything on an incline!

Operator Experience
Operator ExperienceCushioned knee pad & spring cushioned standing platform | Cushioned zero-turn steering levers | Dash indicator lights | USB power port | Cup holder | Machine mount assistance bar

Environmental
EnvironmentalEPA & CARB compliant

Weight
Base Unit Weight1,300 lbs.

Dimensions
Dimensions93" L x 56" W x 57"H | 72"-84" With optional rear attachments

Warranty
Limited Warranty36-month machine and accessories/36-month unlimited hour commercial warranty (refer to manual)
