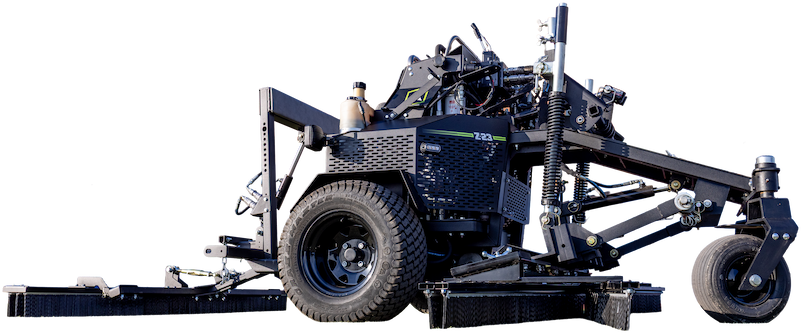

ABI Equipment Force Z-23 for Synthetic Turf
YellowTennisball SVG
Yellow Softball SVG
Yellow American Football SVG
Yellow ABI Equipment Sports Hex SVG
Yellow Soccer Ball/Football SVG
Yellow Baseball SVG
Yellow Golfball SVG

Synthetic Playing Surfaces Never
Looked So Good

The ABI Force just expanded it’s territory. With four new quick-swap attachments engineered for synthetic turf, the same zero-turn machine that grooms your natural surfaces now maintains you artificial turf, no second machine required.

The ABI Force is a zero-turn surface management machine built around one idea: one operator, one machine, every surface on the property. Its quick-swap attachment system lets you change tools in minutes, so the machine that drags your infield in the morning can groom your synthetic field in the afternoon. Zero-turn maneuverability means you work tight corners, sidelines, and edges with precision instead of making extra passes.

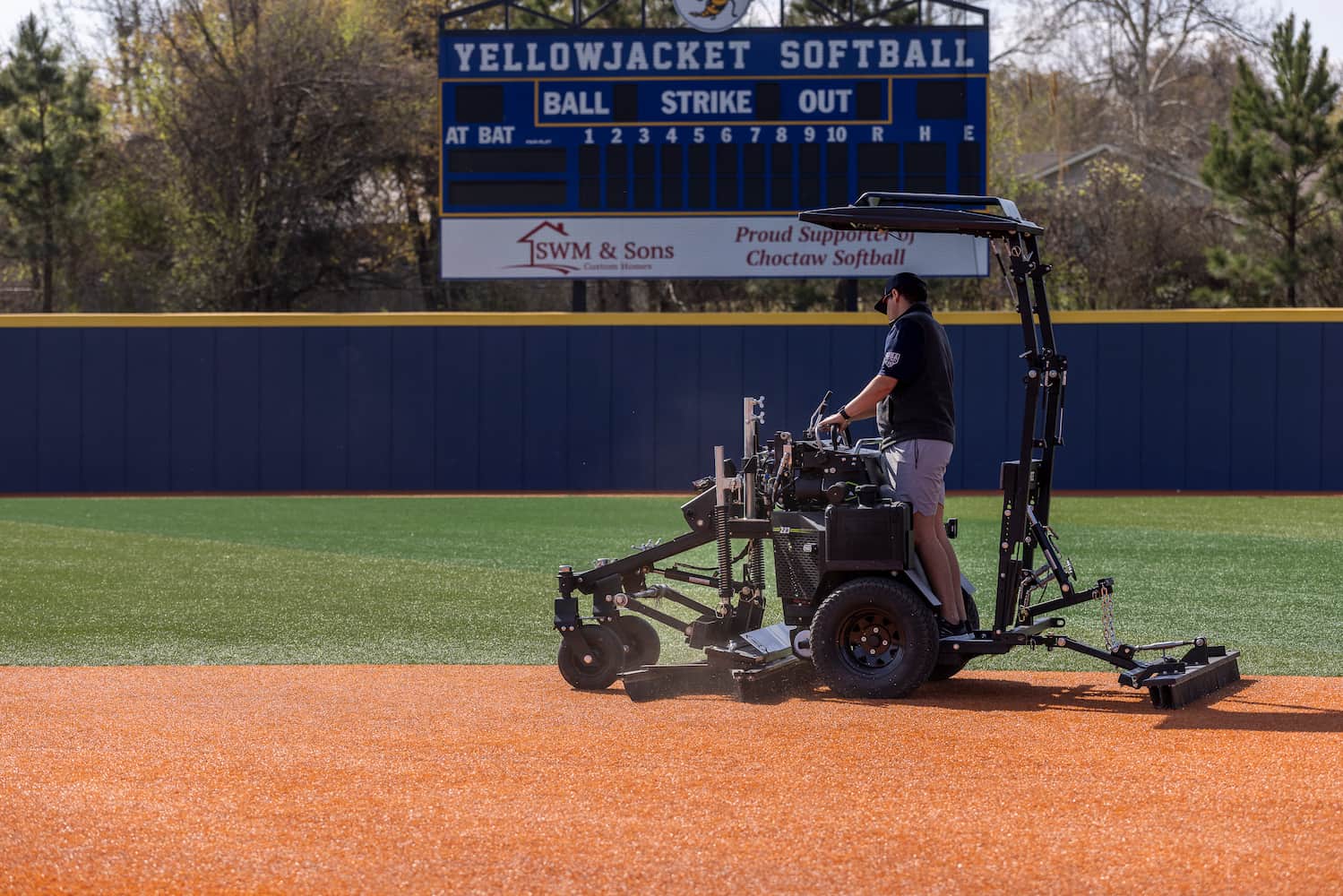

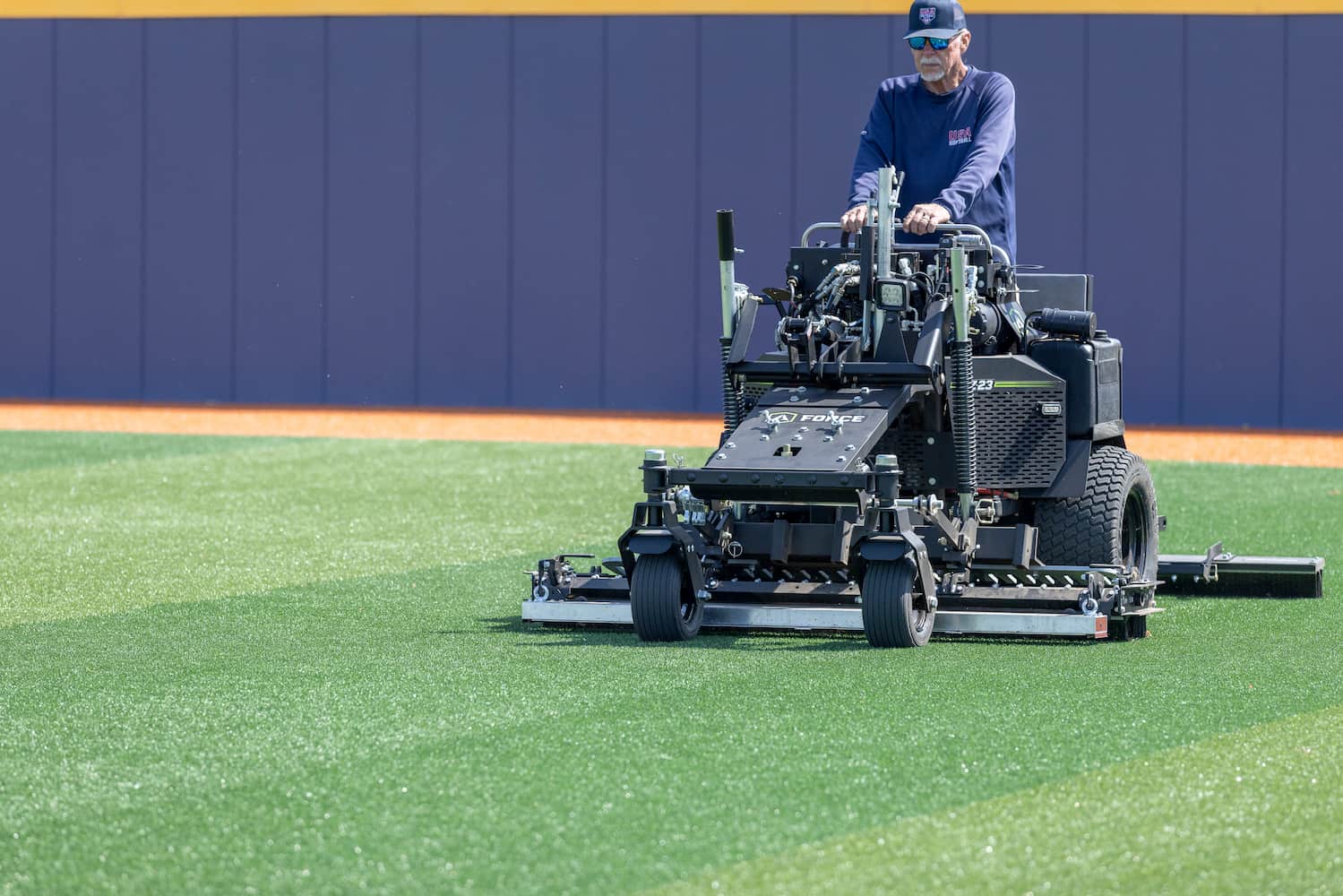

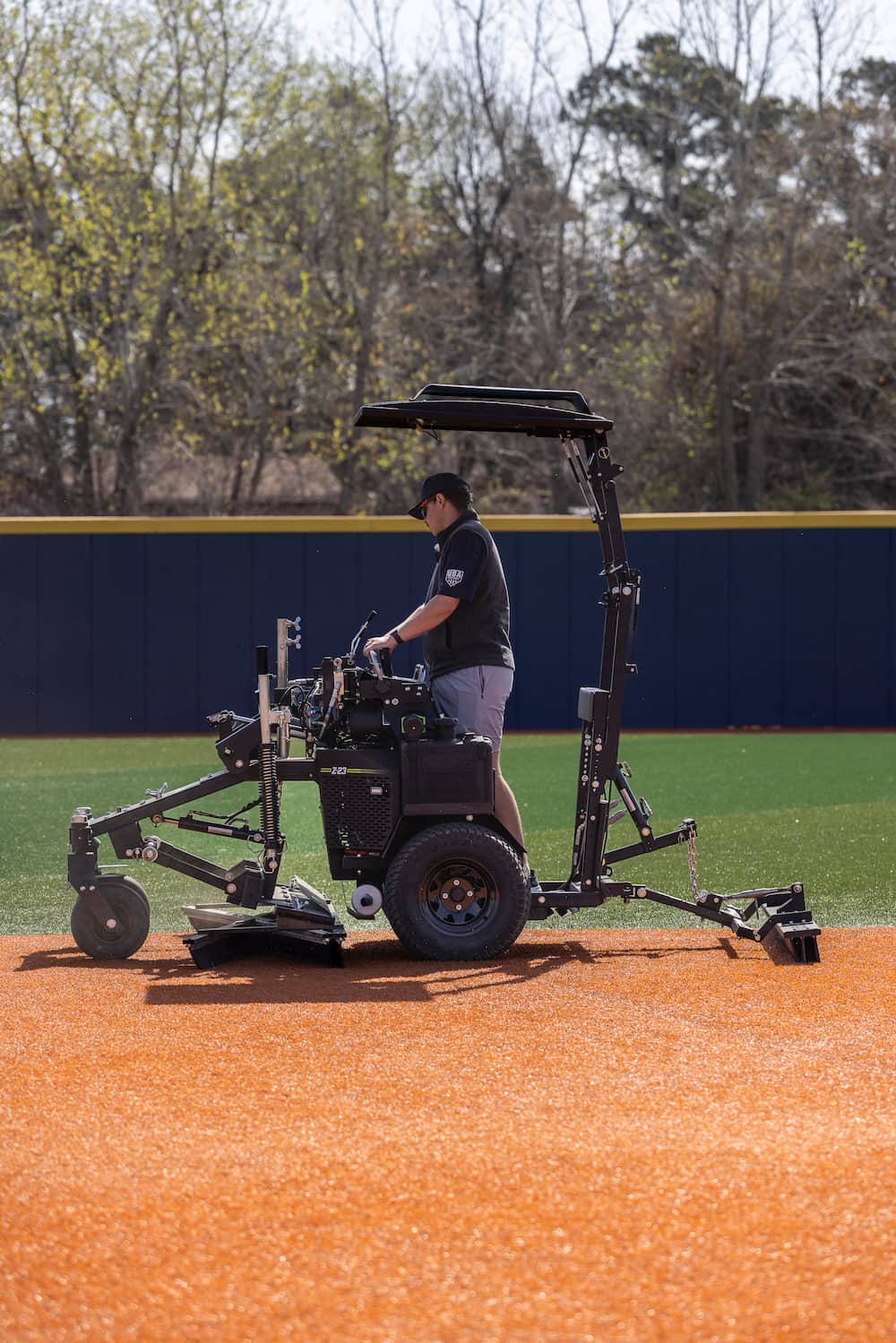

Now the Force takes on synthetic turf. The new attachment lineup includes a mid-mount X-Broom, a rear-mount broom, a mid-mount tine system, and a magnet, each designed to stand infill upright, redistribute material evenly, and pull dangerous metal debris before it finds a cleat. Whether you manage natural surfaces, synthetic fields, or both.

Attachments for Every Synthetic Field

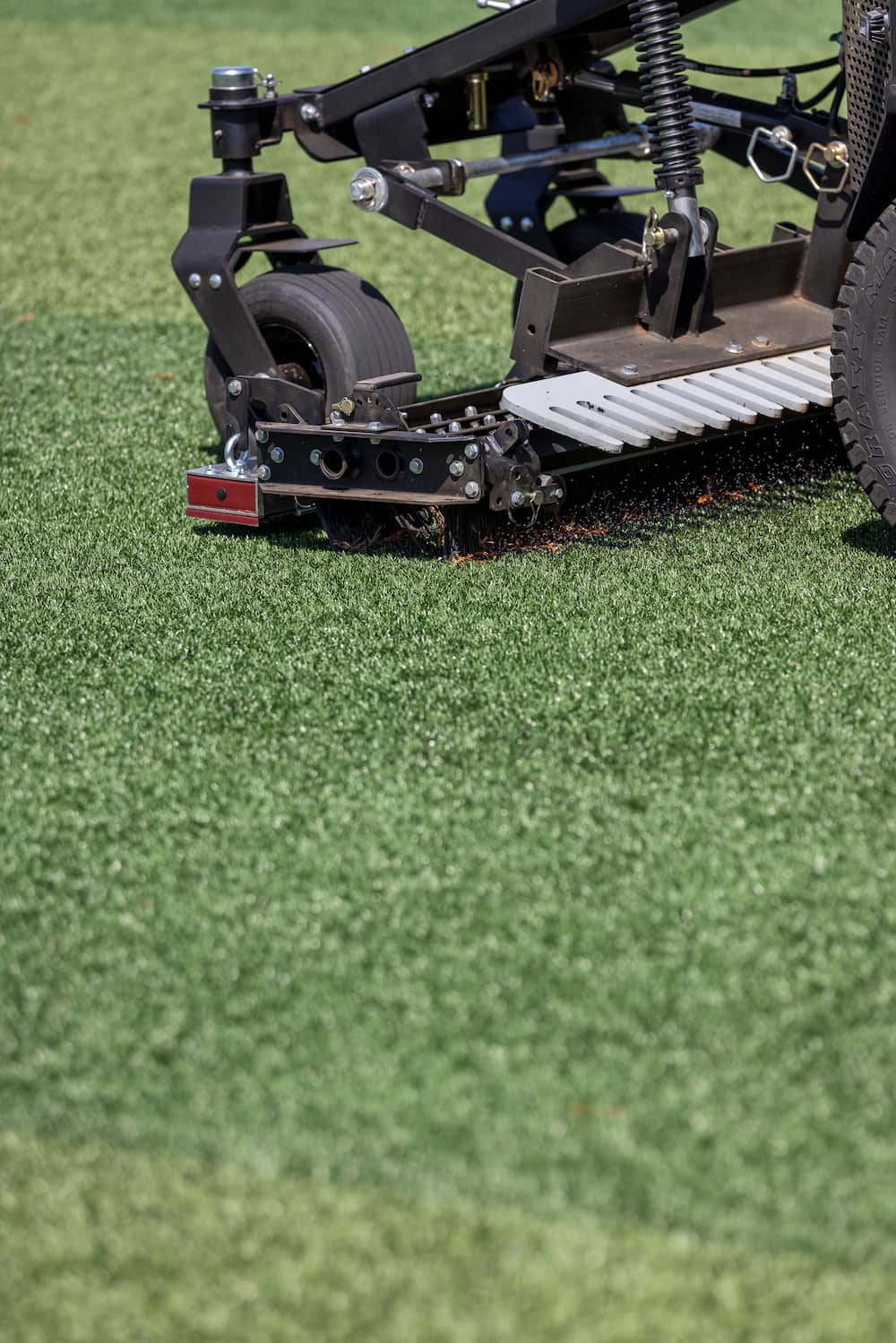

Tine System
Penetrate compacted infill to loosen, lift, and revitalize where traffic hits hardest.

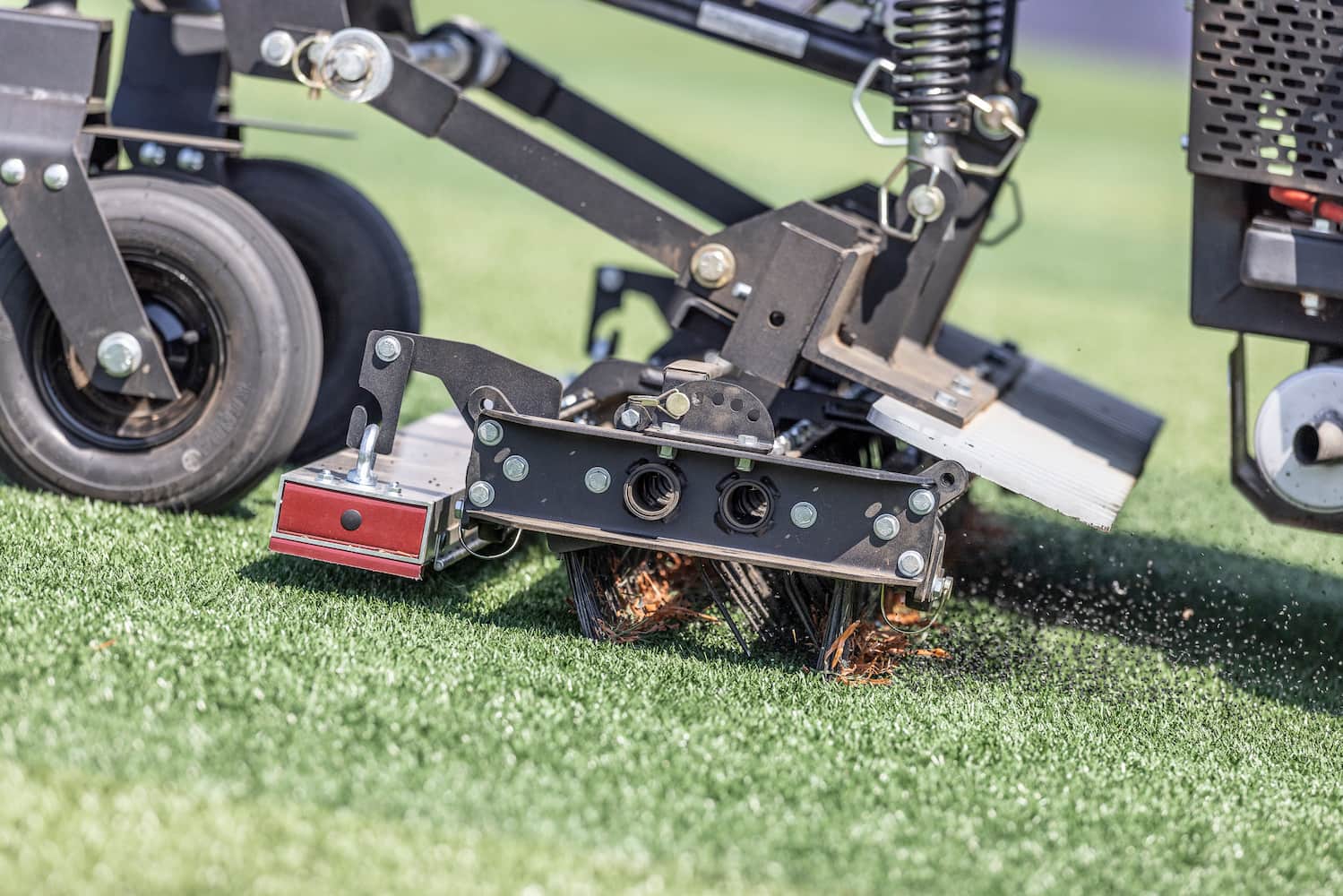

Magnet
Capture ferrous debris hiding below the fiber line, making metal sweeps part of every pass, not a separate job.

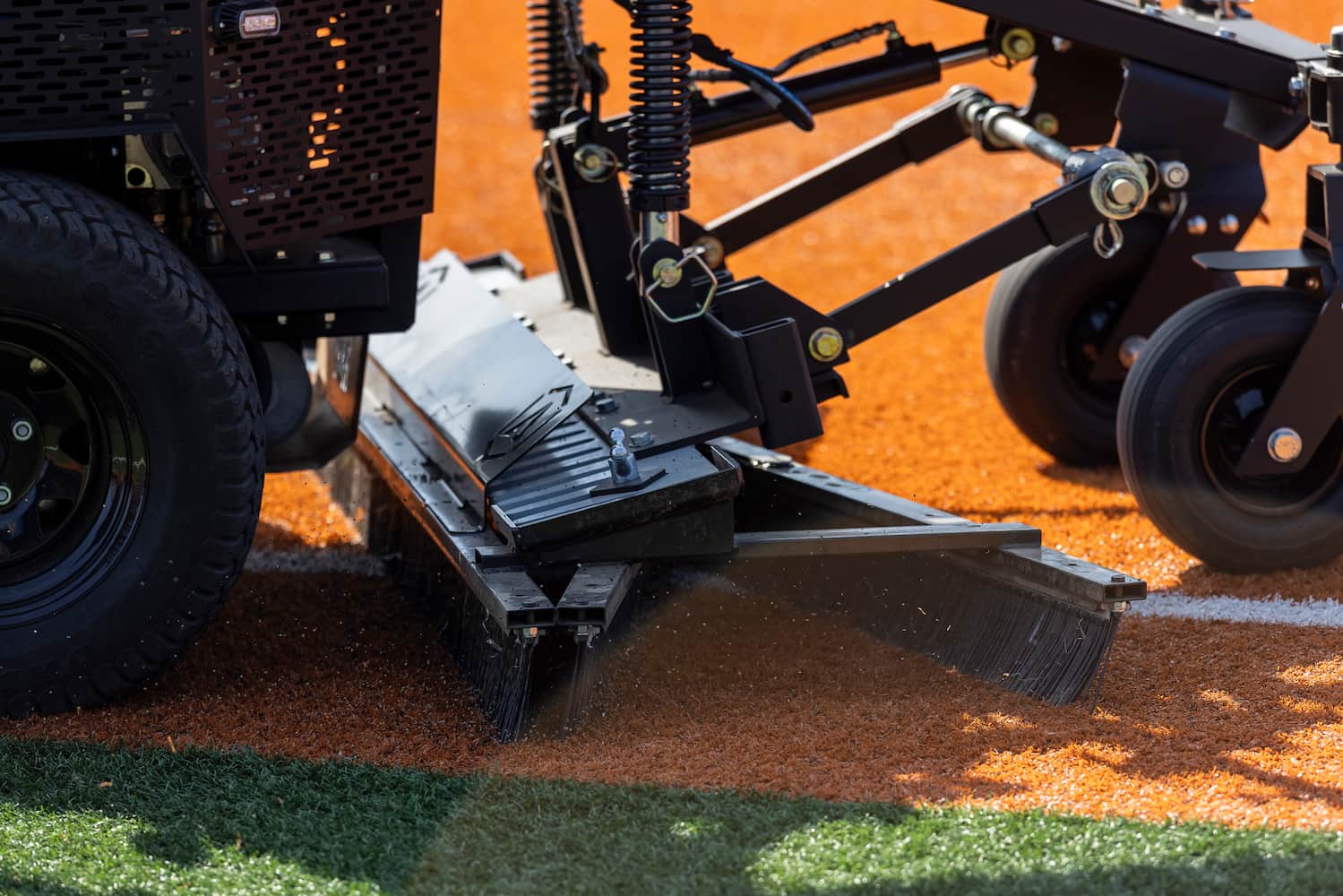

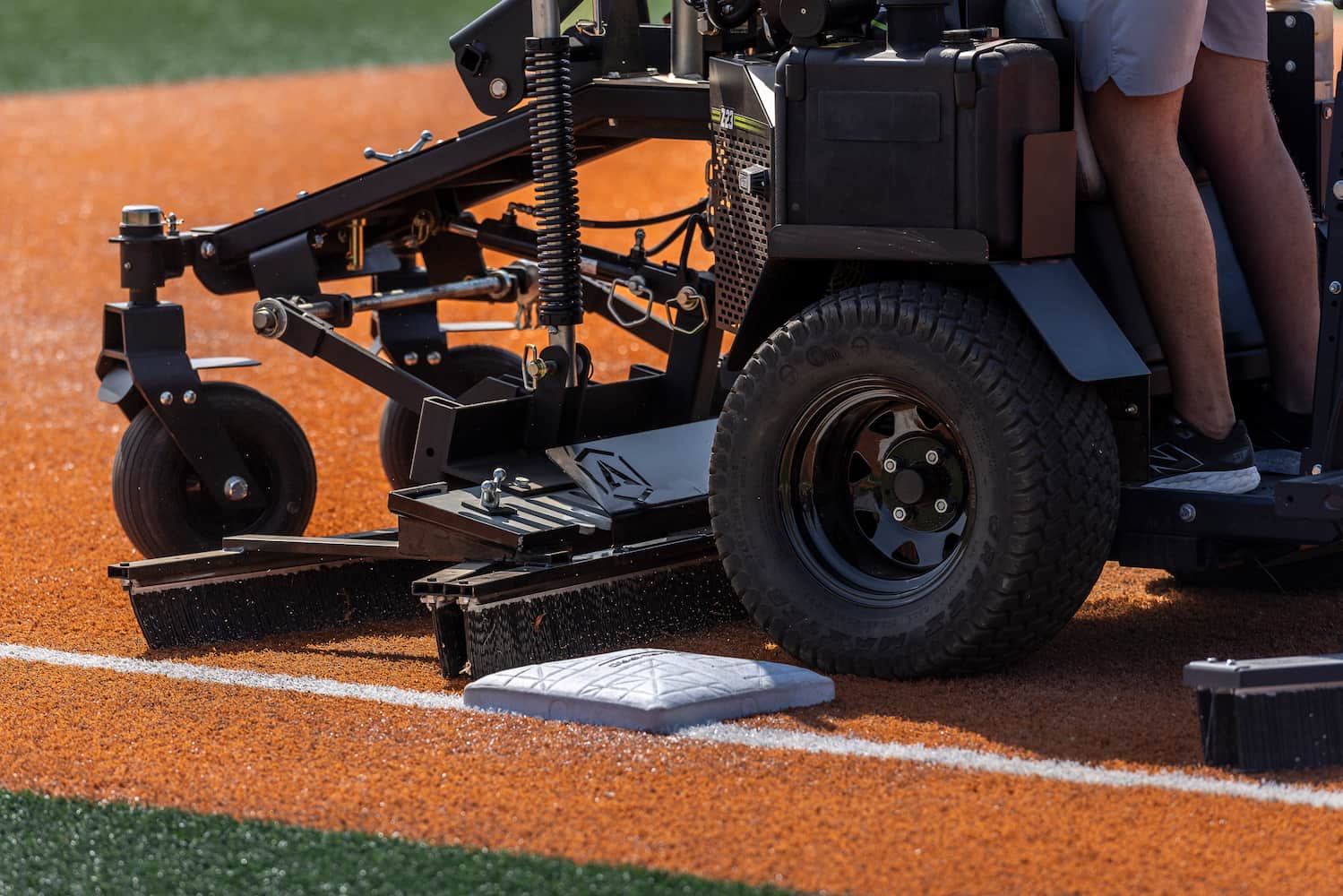

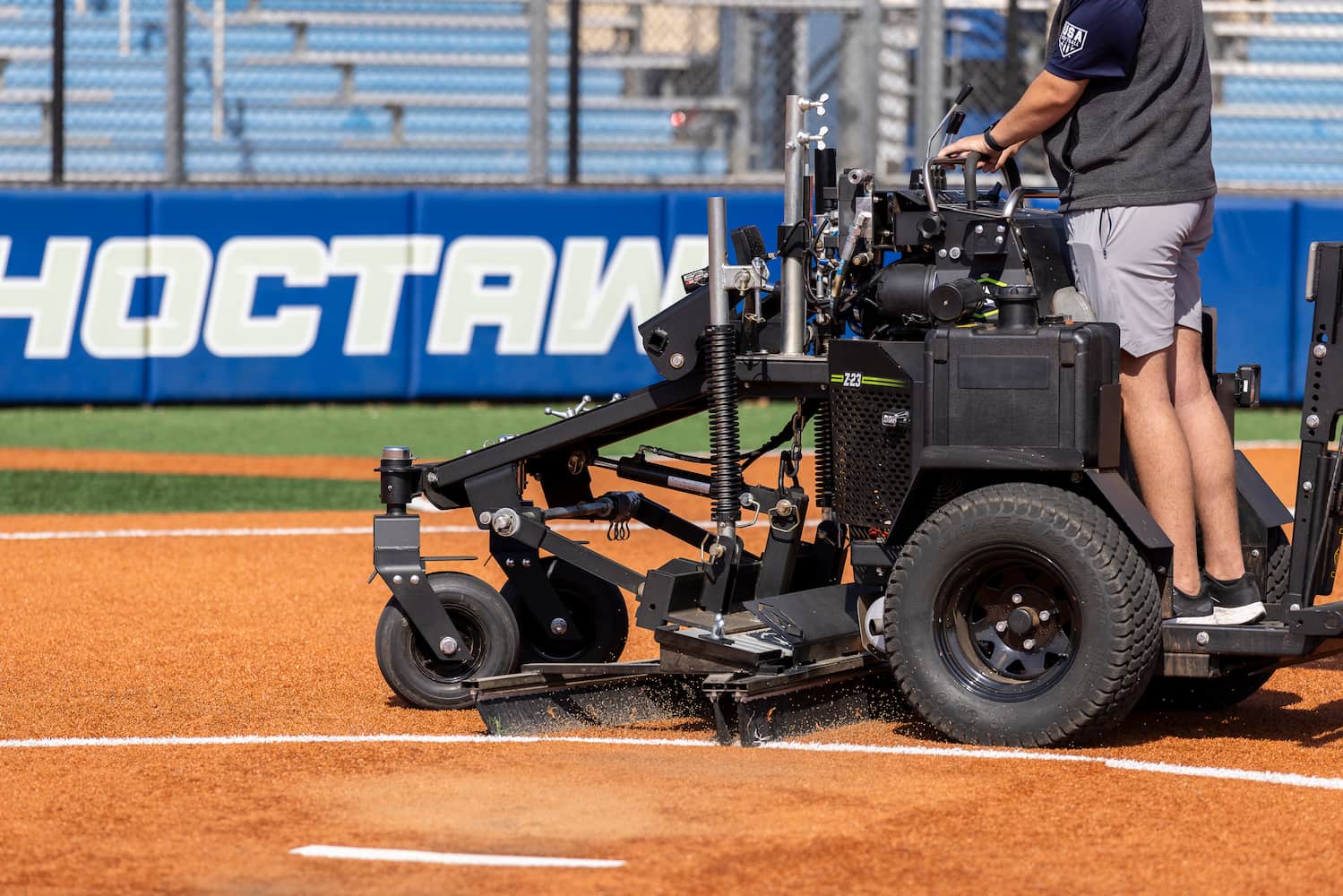

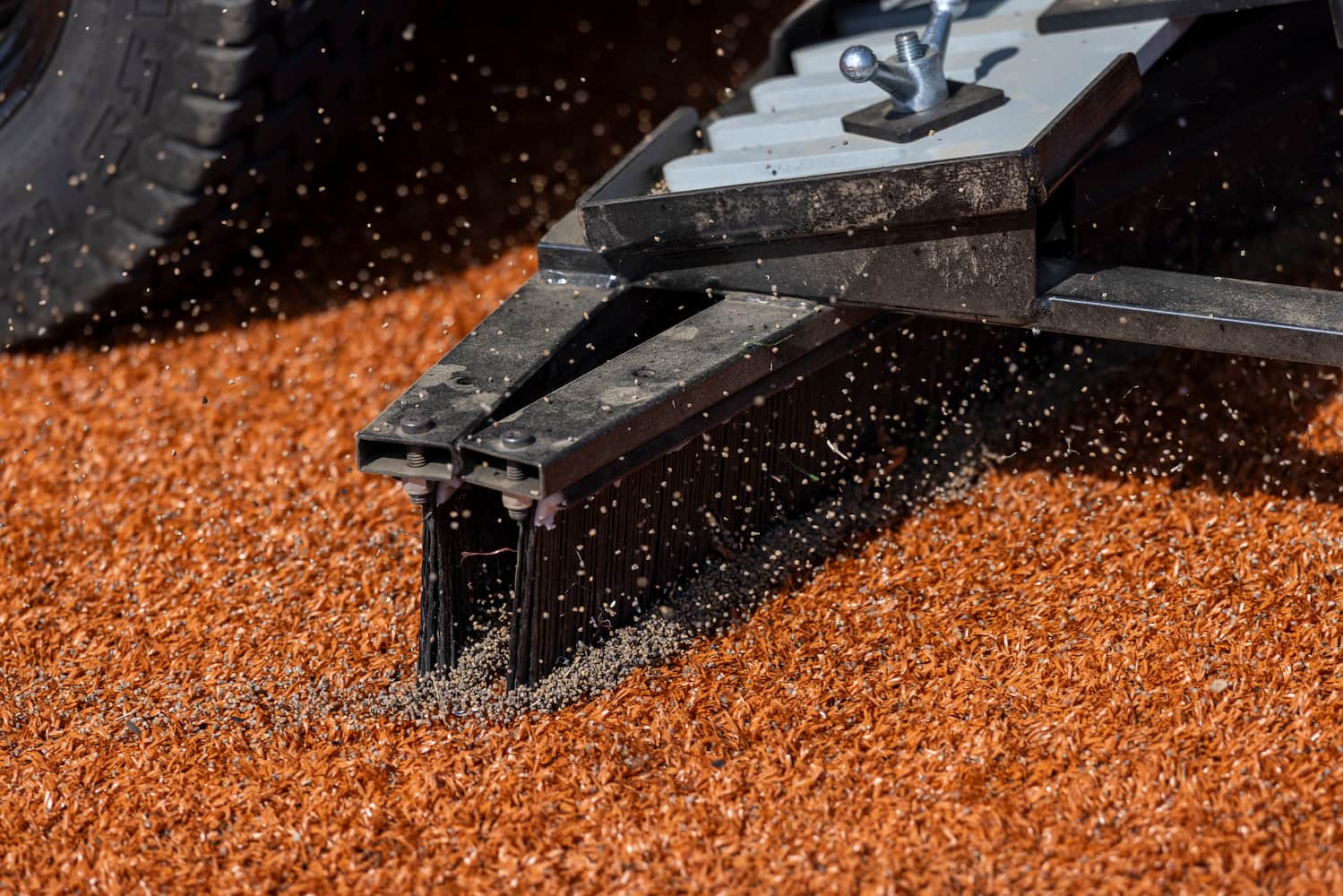

X-Broom

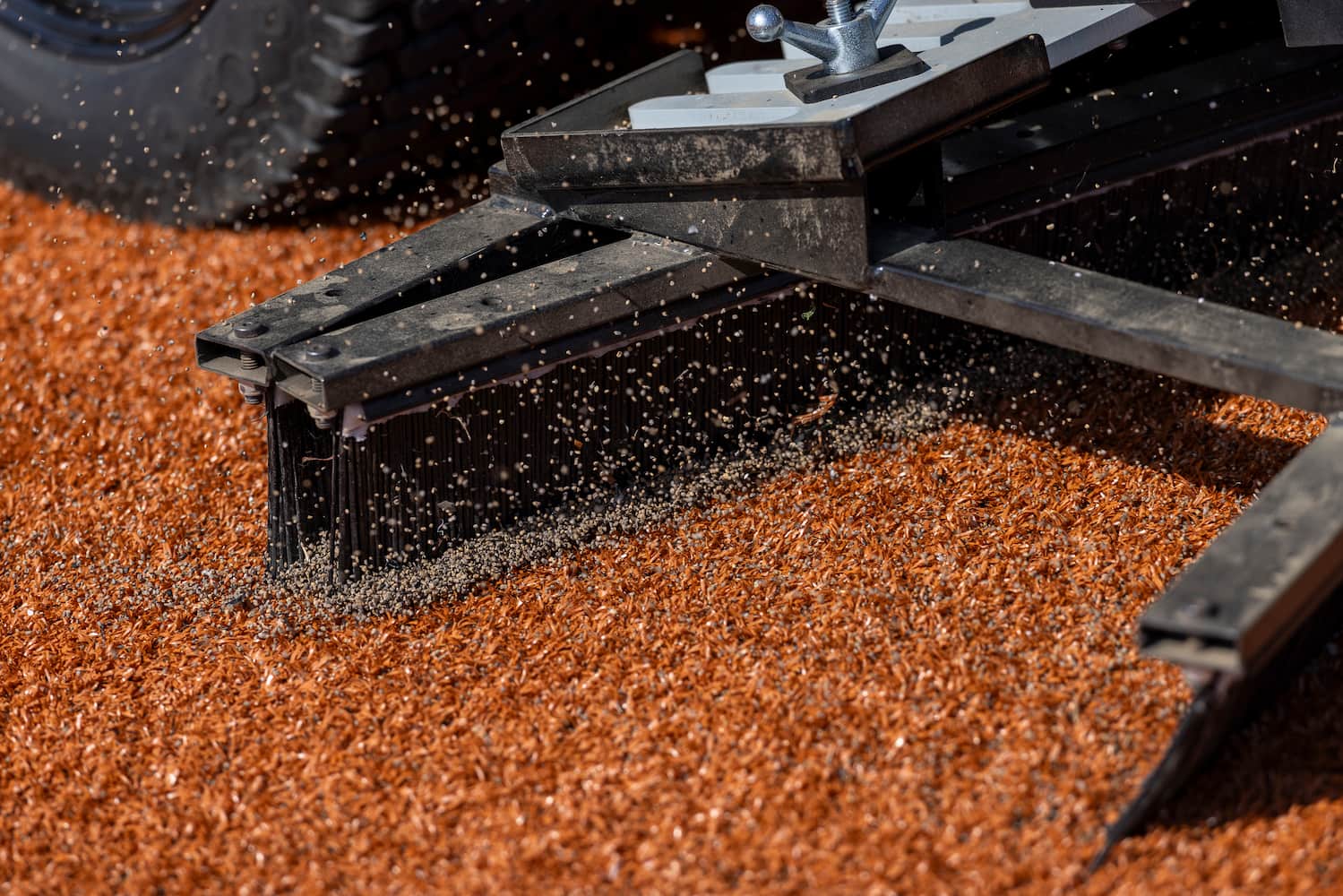

The X-Broom’s crossed brush pattern lifts matted fibers and levels infill in a single pass.

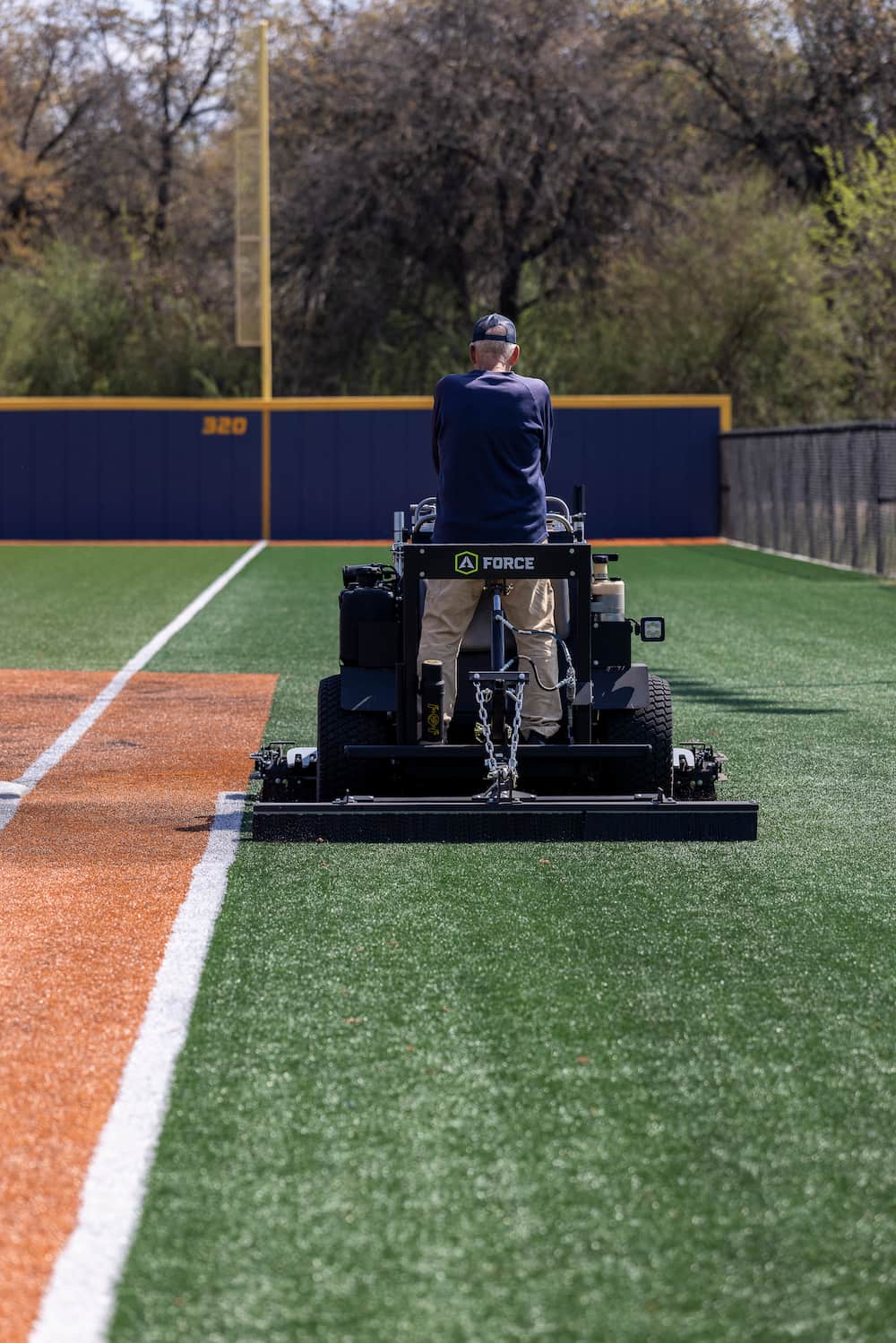

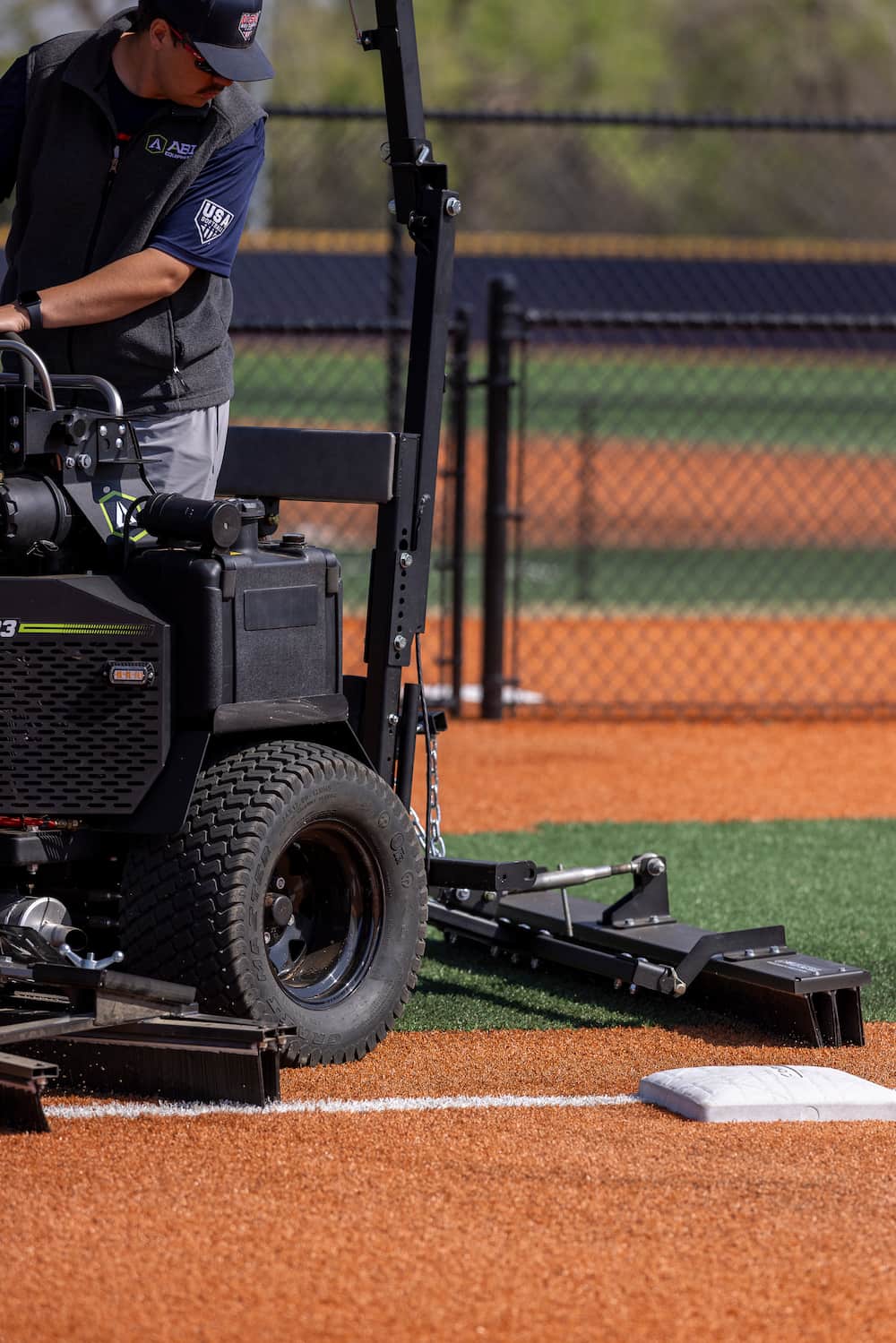

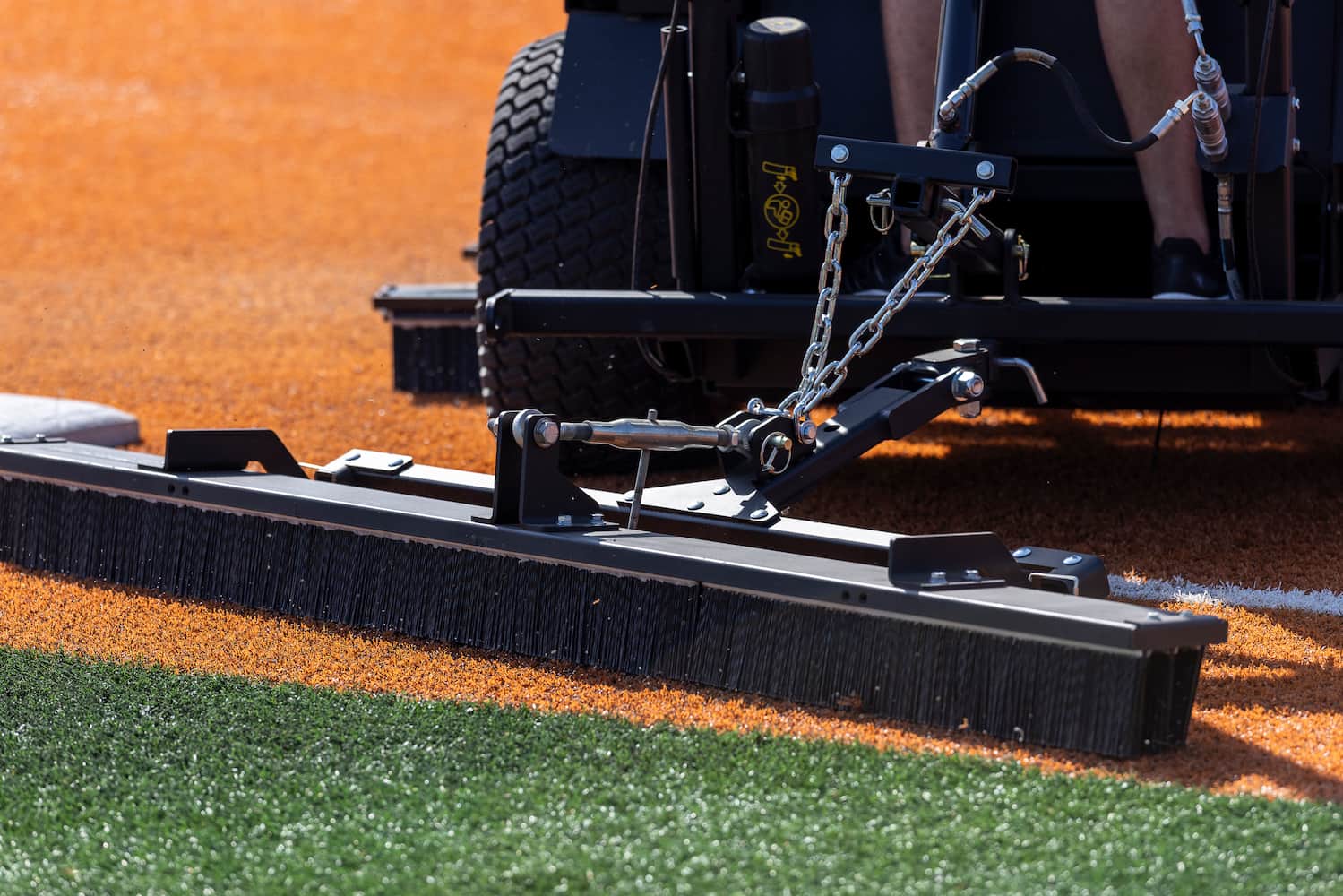

Rear Broom

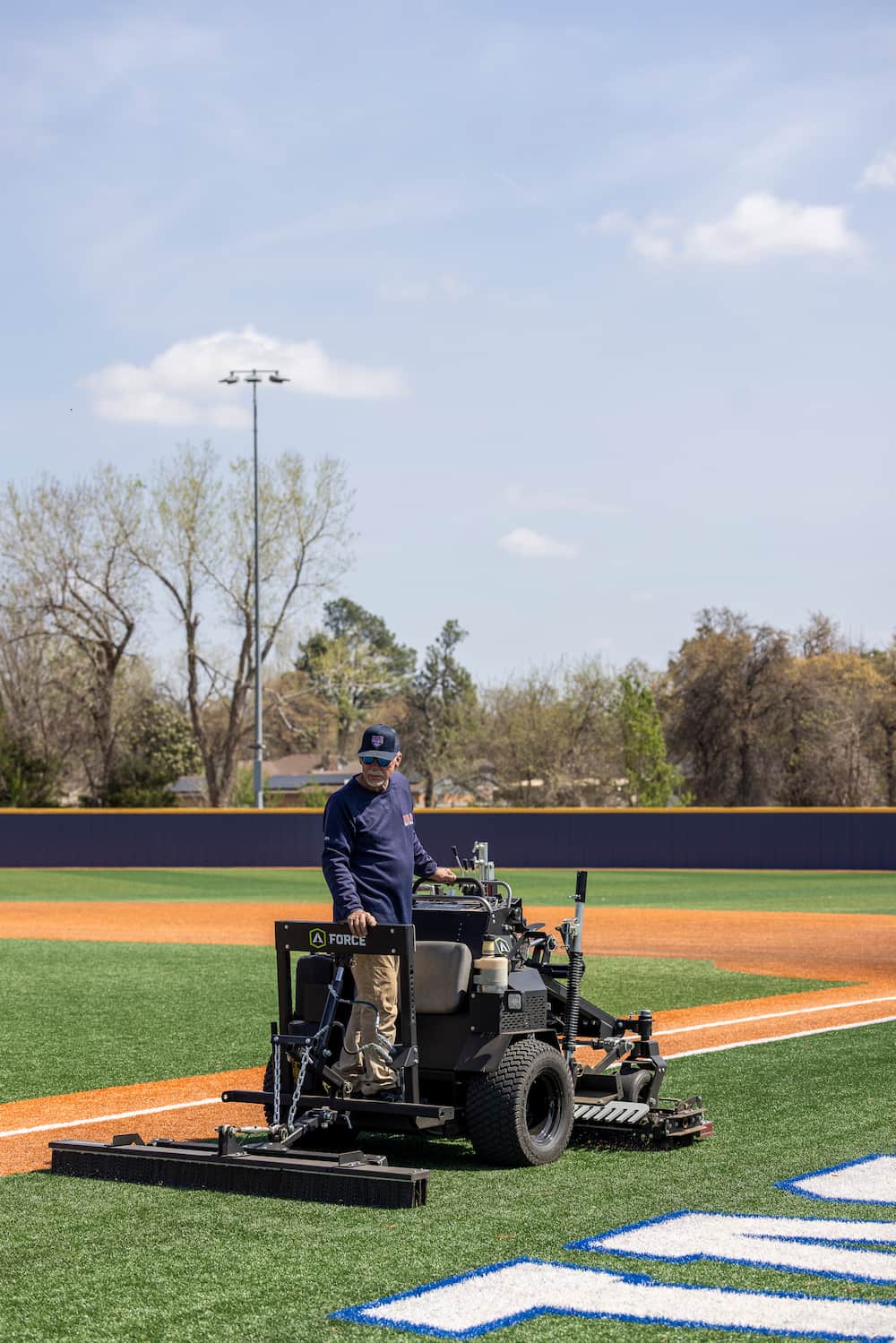

Sweep and redistribute infill behind the machine, leaving a uniform, game-ready finish across the entire field.
X-Broom
The X-Broom’s crossed brush pattern lifts matted fibers and levels infill in a single pass.
Tine System
Penetrate compacted infill to loosen, lift, and revitalize where traffic hits hardest.
Magnet
Capture ferrous debris hiding below the fiber line, making metal sweeps part of every pass, not a separate job.
Rear Broom
Sweep and redistribute infill behind the machine, leaving a uniform, game-ready finish across the entire field.

Zero-Turn Machine, Now For Every Field.

With Swappable Attachments

Natural Surfaces

Laser Grading

Renovating

Leveling

Aerating

ABI 'Force' yellow logo
Stylized monochrome Force Z-23 being displayed.
Synthetic Surfaces

Debris Cleaning

Snow Removal

Sanitizing

Cleaning

Leveling

Get Quote

Real stories from our Trailblazers

This piece of equipment does more for me and makes more impact on my ability to maintain my field than any piece of equipment I’ve ever had.

Chuck White

Head Groundskeeper: USA Softball

Reliability in product and equipment is super important to our sport. And I feel that a product like ABI Force allows me the most success in my day-to-day grounds chores.

Whitney Mesi

Softball Groundskeeper, Oklahoma

Get Game Ready Surfaces with ABI Force

Fill out the form and an ABI product specialist will follow up with you to find the right ABI Force configuration for all your surfaces.

Free Quote, no strings attached

Learn about getting gameday ready from the experts

Personalized product recommendation

5

Star
Rating

25+

Years

in Business

3 YR

Warranty

#1

Zero-Turn
Infield Groomer

Get Your Free Assessment

877-788-7253

No obligation.
Mon-Fri 8AM – 5PM EST

ABI Force Features

Force RVF

Responsive Variable Force Technology (RVF)

Located at the mid underbelly of the ABI Force, the patented RVF Technology hydraulically controls mid-mounted ground-engaging attachments with lift, variable down pressure, and pitch adjustments.

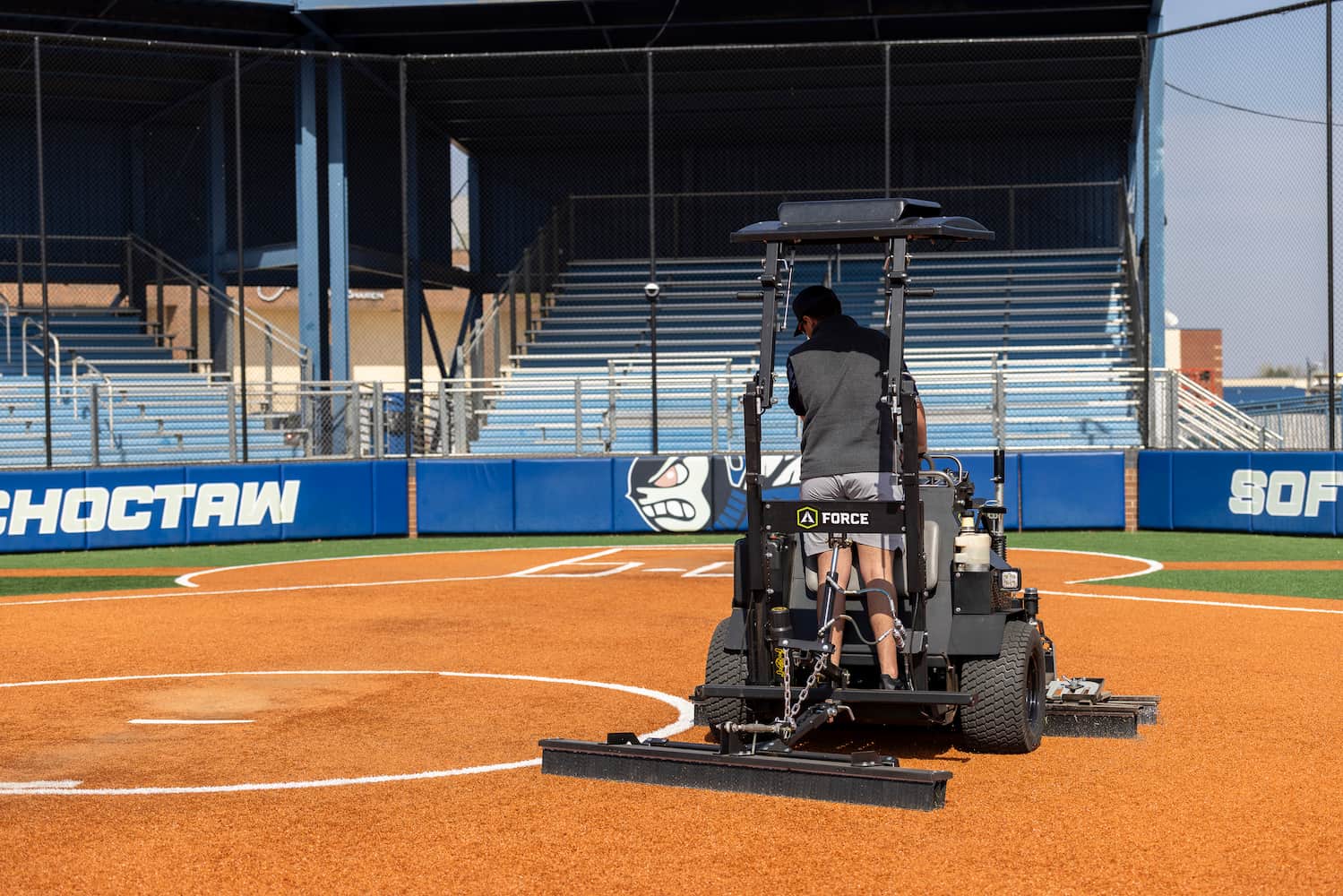

front angle view of an ABI Equipment Force Z-23 for Synthetic Turf being used to groom a softball infield with the Magnet attachment

Zero-Turn Functionality

The zero-turn capability of the Z-23 means that you can get in tight spots, around edges, and closer to tree lines than with a skid steer or other heavier duty equipment. For infield grooming and seedbed prep, you want that light footprint and maximized nimbleness.

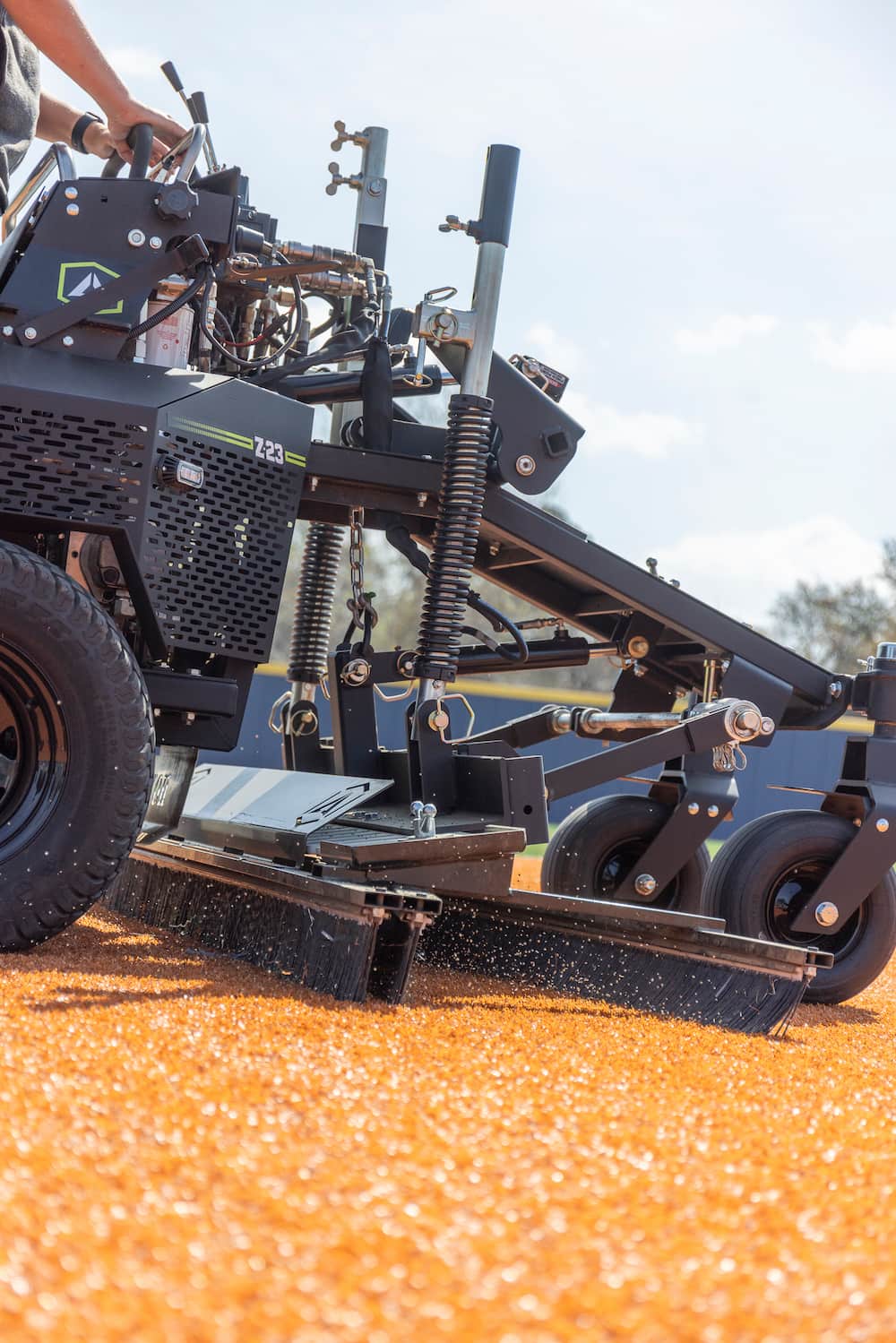

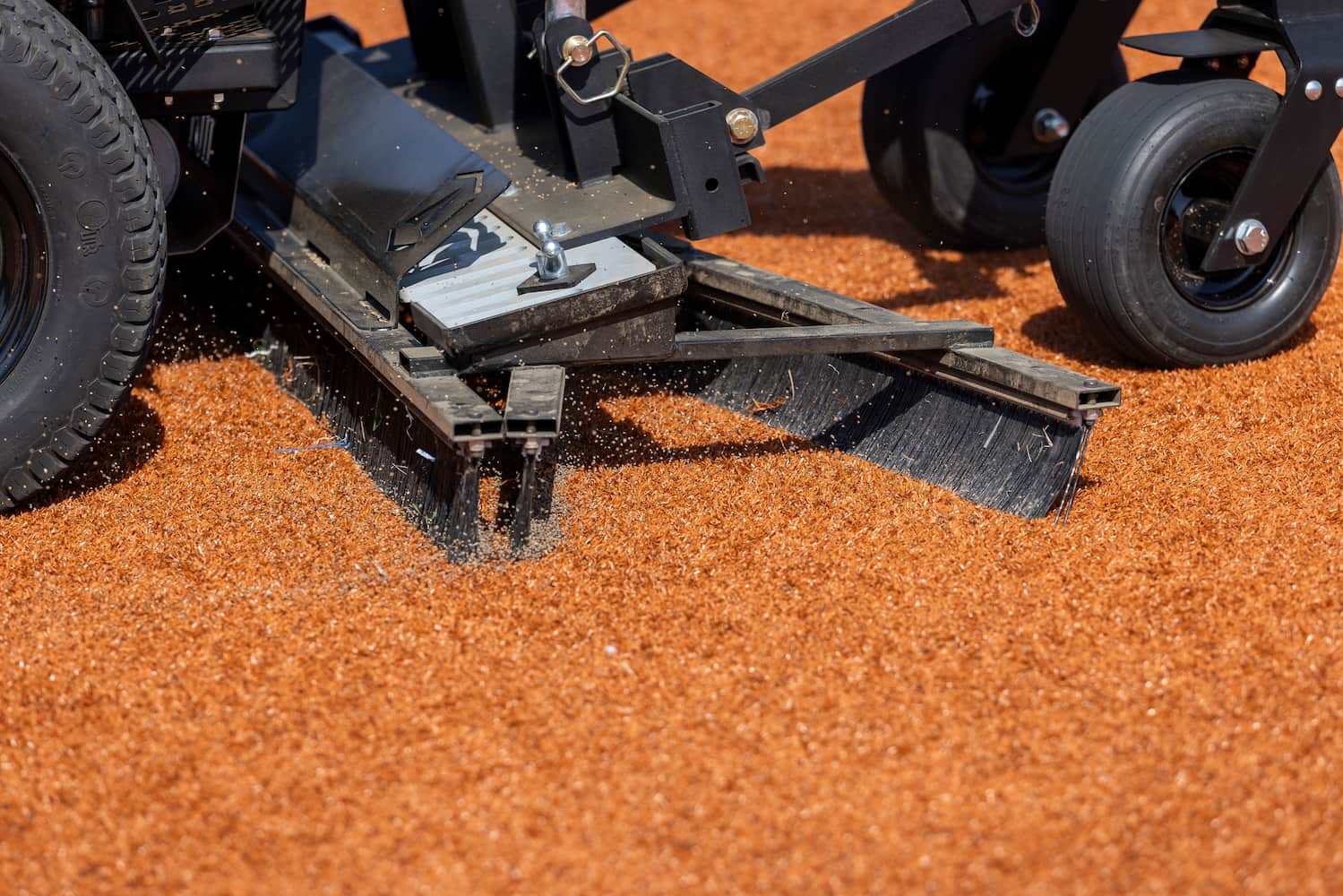

side view of the X-broom in action on an ABI Equipment Force Z-23 for Synthetic Turf being used to groom a softball infield

Speed Lock + Depth Lock

The Depth-lock feature prevents mid-mount attachments from going any deeper into the infield surface than intended. This feature makes it easy to ensure consistent preparation from field to field and operator to operator. The Speed-lock feature prevents less experienced users from operating the ABI Force faster than a facility manager establishes. This feature provides improved safety and ease of use for all operators.

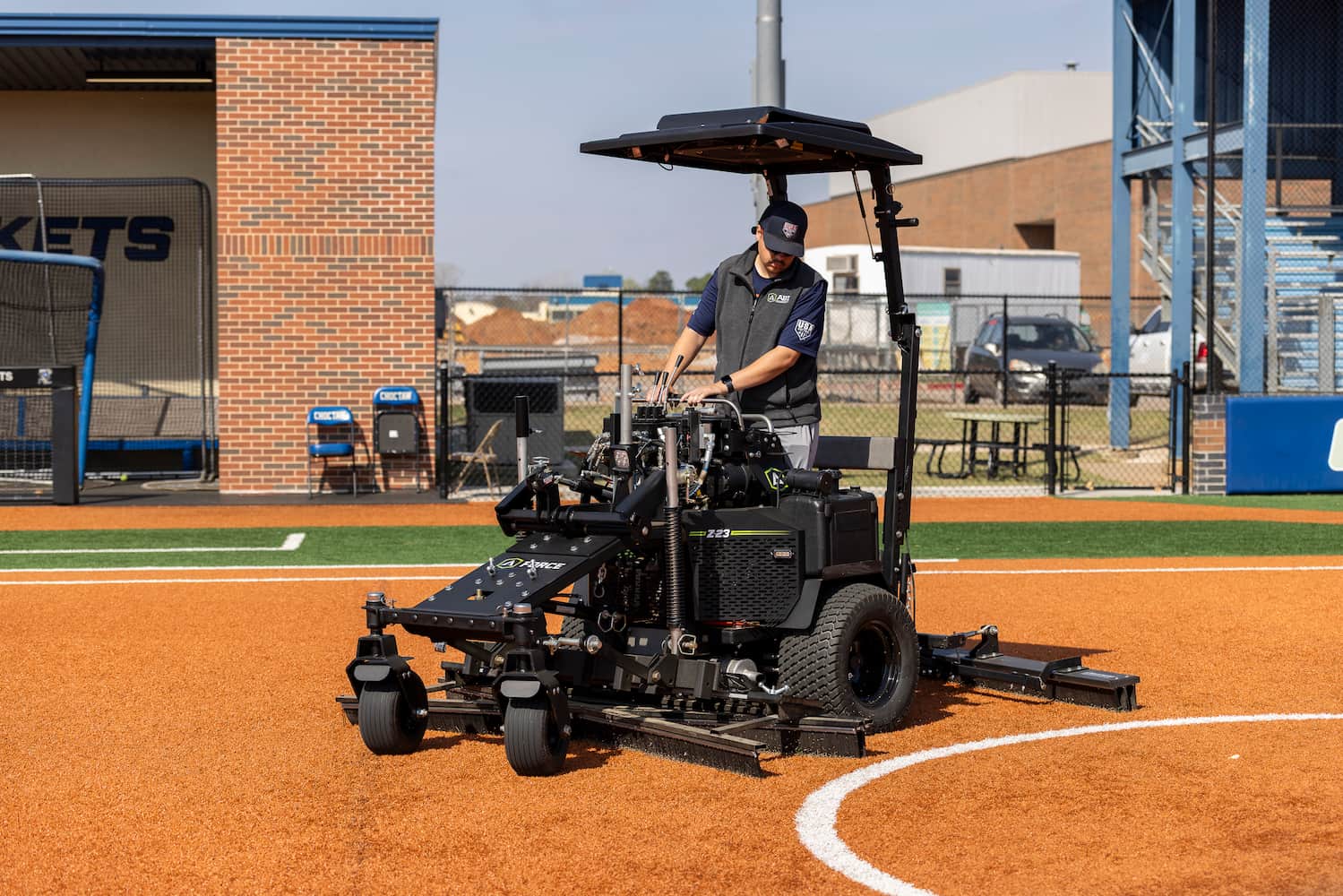

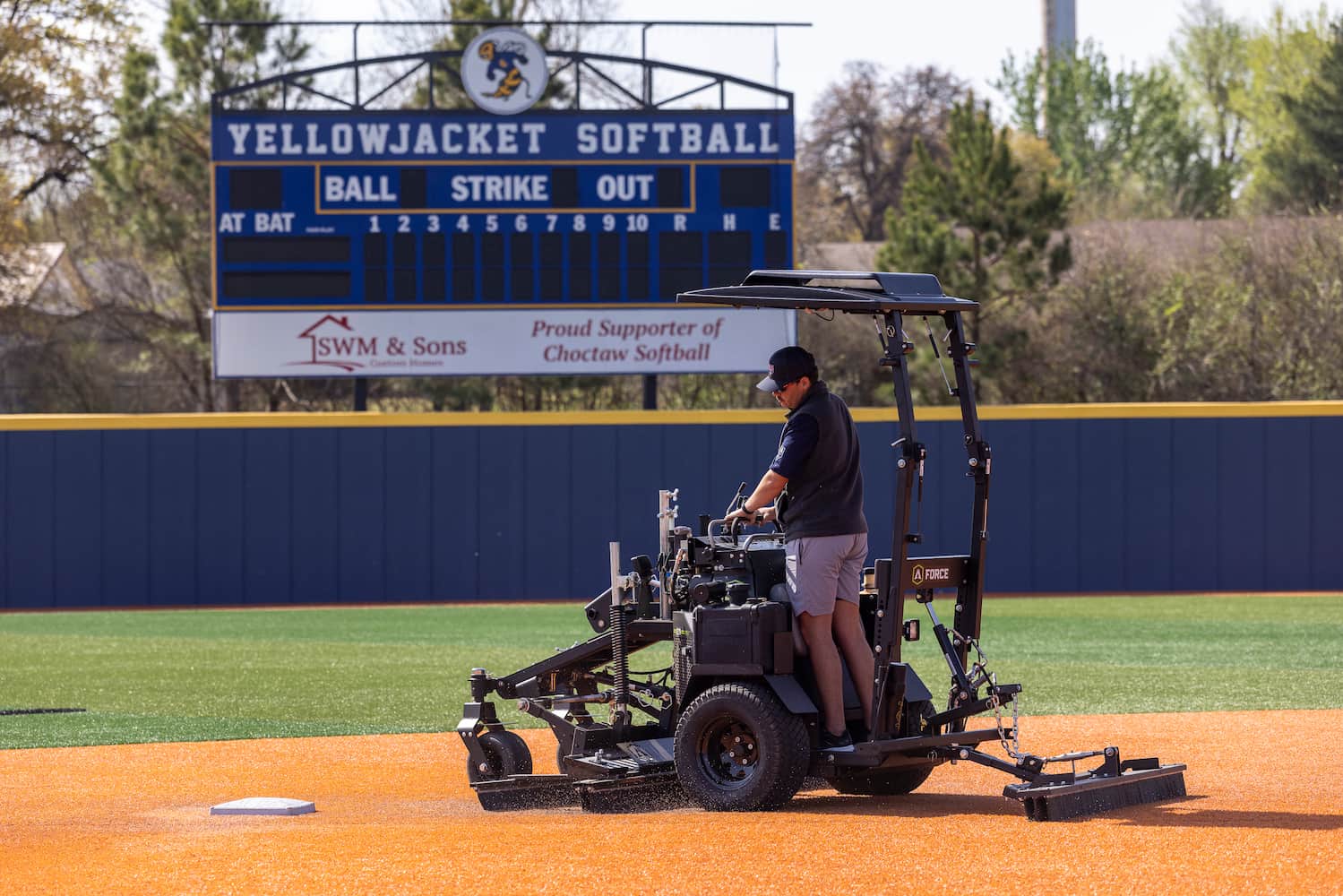

front angle view of an ABI Equipment Force Z-23 for Synthetic Turf being used to groom a softball infield with the POWERVISOR attached

Total Control

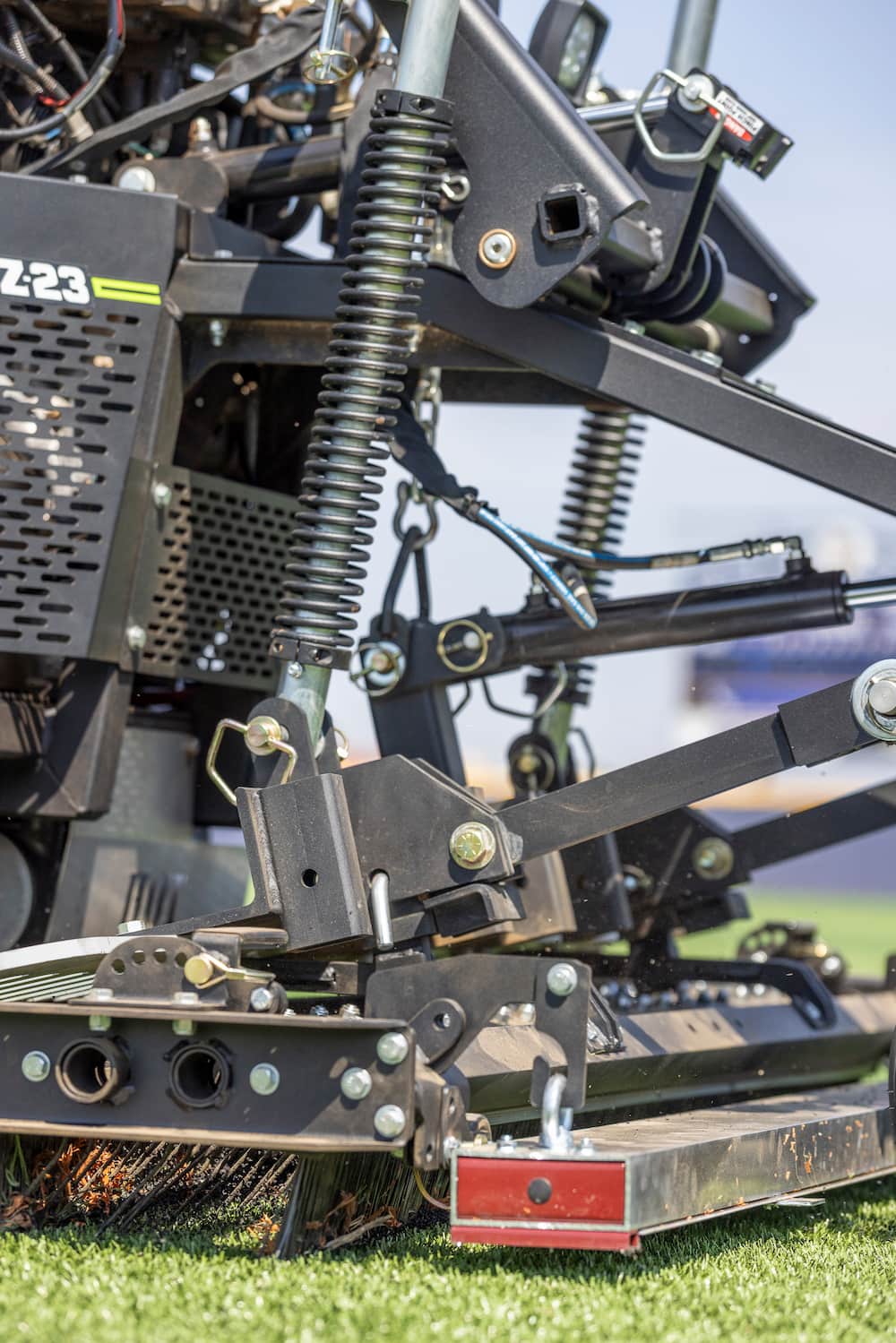

The patented spring system allows for up to 1,000 lbs of down pressure, but builds in forgiveness, so the Z-23 can power through some of the toughest jobs. With unparalleled pitch-control and hydraulic rear lift control, the ground engagement components mimic the movement of the machine so you can get finishing, feathering, and sifting results.
Force EFI Engine

Electronic Fuel Injected (EFI) Engine

Each Z-23 comes equipped with a 25HP electronic fuel injection engine standard. An EFI system utilizes advanced computer controls teamed with a high-pressure fuel delivery system to provide peak power and fuel efficiency. The Force now starts like a car with no carburetor issues, has increased fuel efficiency, and starts easily in the cold!
Force Beltless Hydrostatic Drive System

Beltless Hydrostatic Drive System

Typically, machinery of this size runs off a Hydraulic Drive System geared to a belt and pulley drive shaft. The lifetime of a belt can be unpredictable as belts frequently break. Each Z-23 is plumbed standard with Dual Stacked HydroGear Variable Displacement Pumps and Fixed Displacement Wheel Motors, avoiding the need for belts entirely.
Force Air Filter

Heavy-Duty 2-Stage Air Filter

Every ABI Force Z-23 comes standard with a Heavy Duty 2-Stage Cyclonic Canister Air Filtration System. A 2-stage filtration system makes sure that your engine pulls clean air, acting as your engine’s shield in dusty conditions. Keep the filter clean to see improved engine performance, fuel efficiency, and extended engine life

Accessories

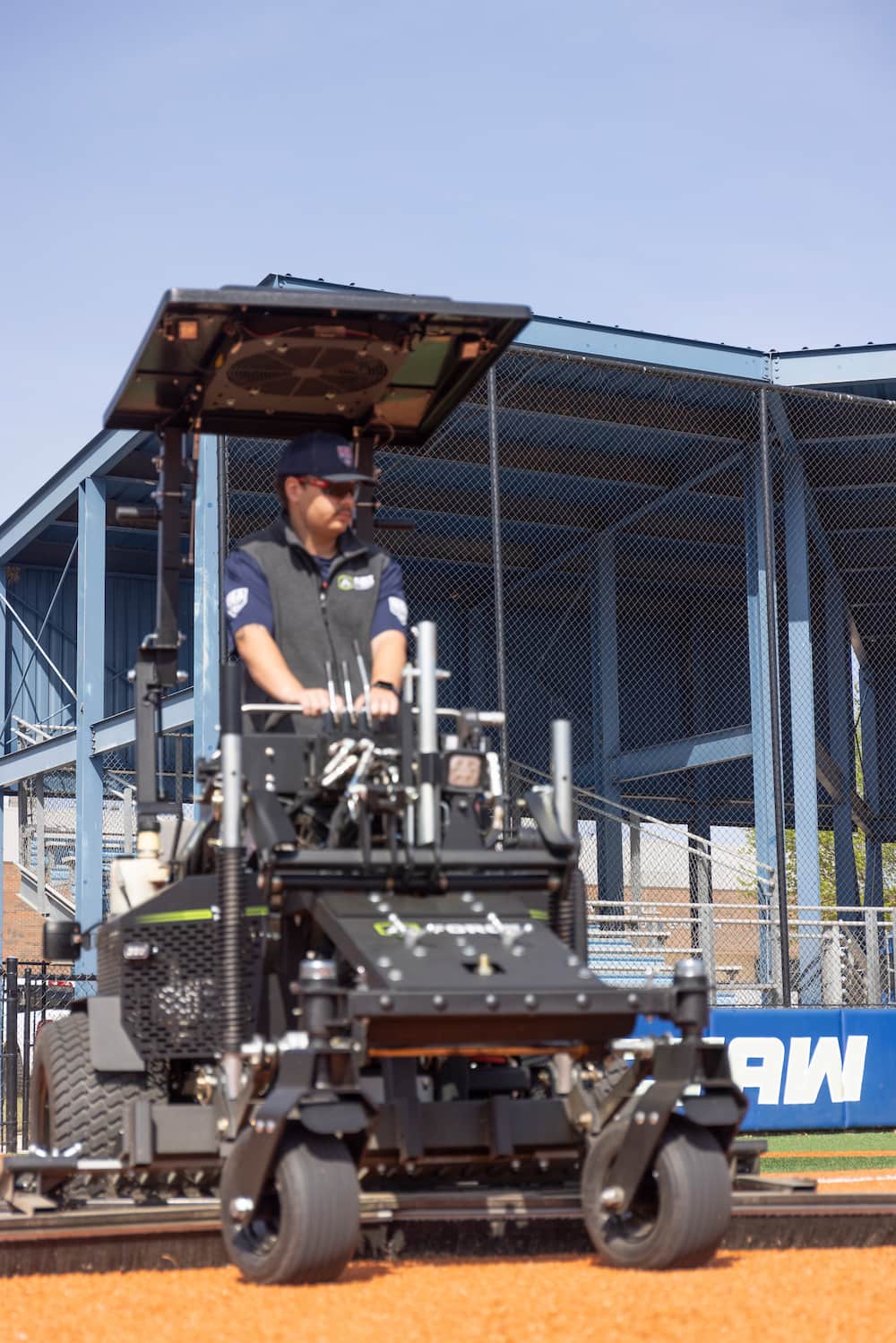

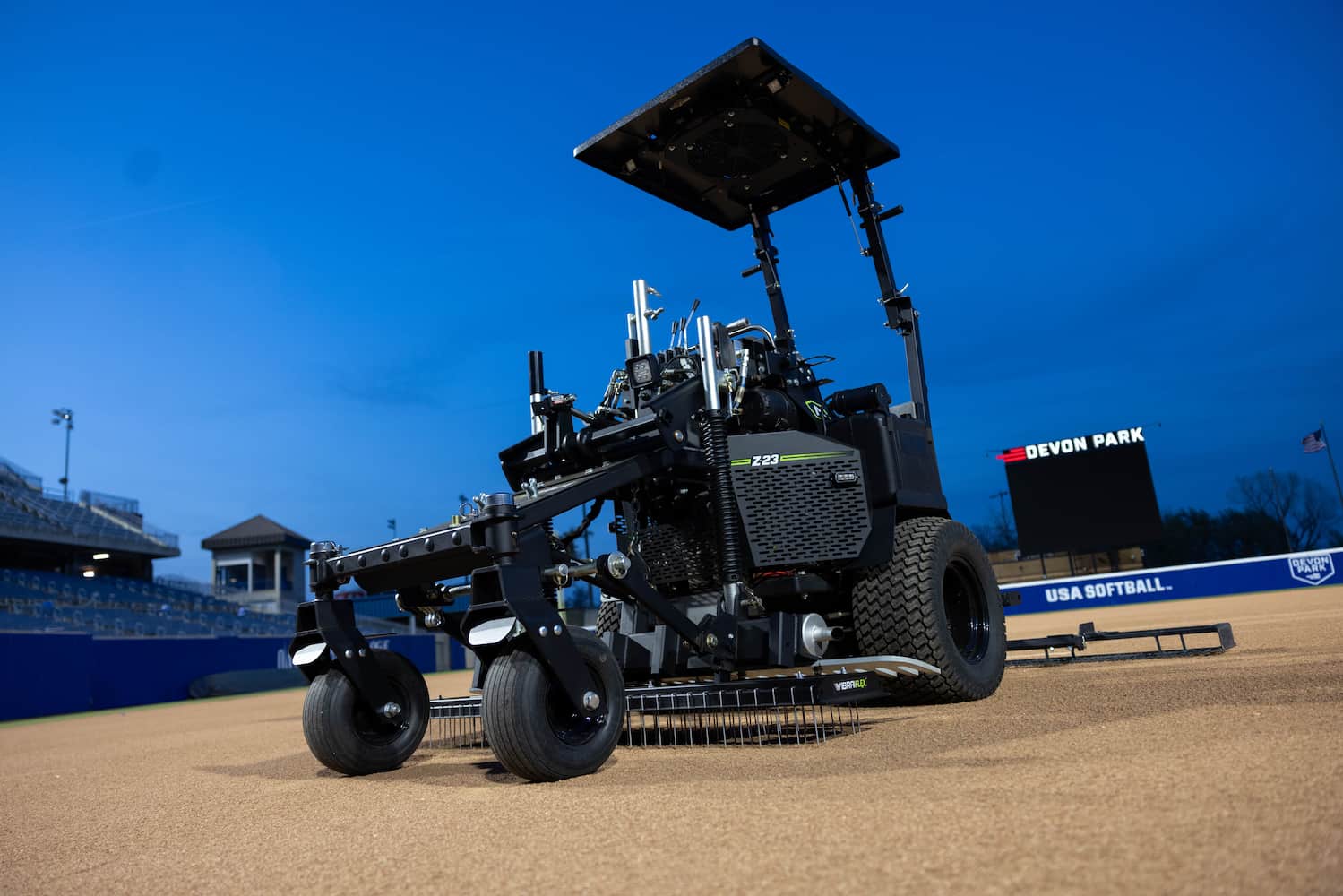

ABI POWERVISOR powered by CoolTops on a Force Z-23 in the center of a Devon Park softball field diamond low front angle view in the evening

ABI POWERVISOR

Brave the elements with the ABI POWERVISOR powered by CoolTops for your Force. Built for groundskeepers, landscapers, and anyone serious about dirt and turf, this all-in-one upgrade delivers comfort, control, and coverage so you can keep working when conditions push back. From blazing sun to dusty fields, it’s a better way to stay focused on the job without slowing down.

Specifications

Force for Synthetic Surfaces

Engine
PowerKohler® Command Pro 25 hp EFI V-Twin OHV (17.2kW) | 747cc | 4-Cycle Air Cooled | Gasoline | Model ECH740
Air FilterHeavy Duty 2-Stage Cyclonic canister air filtration system
Fuel6 gallon/22.7125 liter capacity with fuel gauge | Unleaded gasoline
Electrical20 amp Regulated alternator | 350 CCA at 0 degrees - battery

Drive System
DriveHydrostatic zero-turn | HydroGear variable displacement pumps & fixed displacement wheel motors
SpeedForward 0-10 mph; Reverse 0-4 mph
BrakingDynamic braking via hydrostatic transmission | Integrated parking brake

Chassis
Tires & WheelsFront (Air): 13 x 6.50-6, Rear: 24 x 12.00-12 (Air or Optional Tweel)
Frame ConstructionRugged tube steel
Mid-Mount SystemIndependent hydraulic lift & pitch controls with adjustable & lockable spring-loaded down force with Responsive Variable Force (RVF) technology.
Rear-Mount SystemHydraulic lift control with articulation
Towing Capacity1-1/4" receiver - 2,000 lbs. towing capacity at slow speed on flat and open ground only! Never tow anything on an incline!

Operator Experience
Operator ExperienceCushioned knee pad & spring cushioned standing platform | Cushioned zero-turn steering levers | Dash indicator lights | USB power port | Cup holder | Machine mount assistance bar

Environmental
EnvironmentalEPA & CARB compliant

Weight
Base Unit Weight1,300 lbs.

Dimensions
Dimensions93" L x 56" W x 57"H | 72"-84" With optional rear attachments

Warranty
Limited Warranty36-month machine and accessories/36-month unlimited hour commercial warranty (refer to manual)
