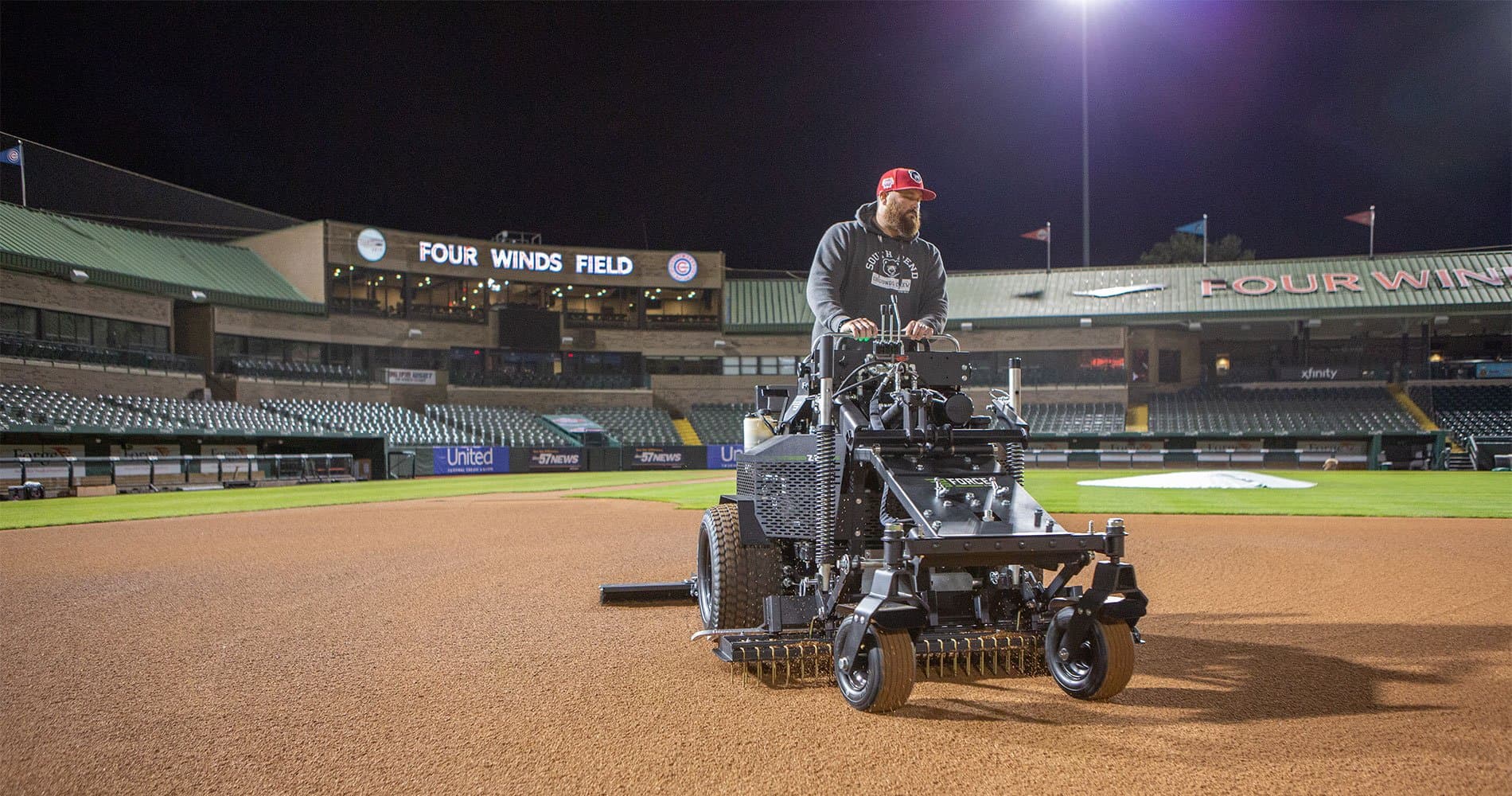

Z-23 for Infield Grooming

Built For The Game

The Z-23 empowers operators with the control necessary to groom, prepare, and renovate; creating the safest and most playable surfaces possible. With available mid- and rear-mounted attachments engineered specifically for ballfields, the Z-23 is quite simply the best infield maintenance and renovation machine on the market.

World-Class Results for Every Field

Renovate, Maintain, And Groom Fields

Whatever field quality you’re working with, the Z-23 infield groomer is the comprehensive grooming, maintenance, and renovation machine you need. Fix drainage, reset infields, seed, fertilize, laser grade, level -all with the same machine and tool-free, quick-swap attachments. From professional crews to coaches and their volunteers, the Z-23 infield groomer empowers whatever size crew you have to get more done, with greater precision and unprecedented efficiency.

Force Advantages

Game Day Prep – Reduce weather-related delays and postponements by getting your field playable, faster.
Fine Tune – Patented lift and swivel rear-mount system replicates the finesse of a hand-raked finish.
Fix It – Leverage a mid-season away series to re-laser grade the infield -no heavy equipment required.

Attachments

Force Seed & Fertilizer Spreader

Holds 120 lbs. of material and has an adjustable spread pattern from 4 to 25 feet.

VibraFlex

Evenly staggered U-pins transfer vibration and flex from front to back, dancing along the infield to shatter surface tension.

Stealth Blade

Our proprietary Stealth Blade design offers the perfect subsurface compaction relief.

Profile Blade

Used to de-compact the surface without upending the surface profile.

Mini Box Blade

Skip the handwork and quickly level and grade in the tightest areas or on surfaces where a light footprint is necessary.

Multi-Function Rake

Can be pitched vertically to back blade material from high areas and fill into low areas.

Force Edger System

The Edger and Clean Up Tool is designed to effectively remove overgrown vegetation from the lips and edges of the infield, ensuring a clean and professional appearance.

Force Plug/Core Aerator

The available 48″ plug aerator for the Force Z-23, mounted to the mid-mount hydraulic lift system, enables 115,000 sq. ft. per hour aerating output.

Force Slit Aerator

The Slit Aerator is an efficient tool designed to enhance soil health by creating slits in the surface up to 2 inches deep, making it ideal for overseeding and relieving compaction.

Force Rear Scoop

The scoop can carry up to 300 pounds of mulch or soil and place it right where you want it.

VibraFlex

Evenly staggered U-pins transfer vibration and flex from front to back, dancing along the infield to shatter surface tension.

Stealth Blade

Our proprietary Stealth Blade design offers the perfect subsurface compaction relief.

Profile Blade

Used to de-compact the surface without upending the surface profile.

Mini Box Blade

Skip the handwork and quickly level and grade in the tightest areas or on surfaces where a light footprint is necessary.

Multi-Function Rake

Can be pitched vertically to back blade material from high areas and fill into low areas.

Force Edger System

The Edger and Clean Up Tool is designed to effectively remove overgrown vegetation from the lips and edges of the infield, ensuring a clean and professional appearance.

Force Plug/Core Aerator

The available 48″ plug aerator for the Force Z-23, mounted to the mid-mount hydraulic lift system, enables 115,000 sq. ft. per hour aerating output.

Force Slit Aerator

The Slit Aerator is an efficient tool designed to enhance soil health by creating slits in the surface up to 2 inches deep, making it ideal for overseeding and relieving compaction.

Tooth Bar

Designed to fracture and loosen material to keep the optional Mini-Box loaded with material.

Roller

The underbelly roller has a 58” working width & an 8” roller diameter.

Force Rear Scoop

The scoop can carry up to 300 pounds of mulch or soil and place it right where you want it.

Fine Finish Broom

The Fine Finish Broom creates the perfect finish in both high and low moisture conditions on well-maintained surfaces.

Pro Finisher

Provides a perfect finish for pro-level infield conditioners.

VibraFlex 3500-R

Two staggered rows of 1/4″ or 1/8″ VibraFlex pins that are designed to remove tire compression and air out the field.

Coco Mat

A perfect drag for surfaces with more moisture and also has a built-in leveling bar.

Rigid Drag Mat

A rigid metal mat with built-in leveling bar is perfect for every-day use and a perfect finish.

XD Flexible Drag Mat

Ideal to prepare an infield ready for play with heavy gauge yet flexible rust resistant galvanized steel mesh.

Force Seed & Fertilizer Spreader

Holds 120 lbs. of material and has an adjustable spread pattern from 4 to 25 feet.

Features

Responsive Variable Force Technology (RVF)

Located at the mid underbelly of the ABI Force, the patented RVF Technology hydraulically controls mid-mounted ground-engaging attachments with lift, variable down pressure, and pitch adjustments.

Zero-Turn Functionality

The zero-turn capability of the Z-23 means that you can get in tight spots, around edges, and closer to tree lines than with a skid steer or other heavier duty equipment. For infield grooming and seedbed prep, you want that light footprint and maximized nimbleness.

Speed Lock + Depth Lock

The Depth-lock feature prevents mid-mount attachments from going any deeper into the infield surface than intended. This feature makes it easy to ensure consistent preparation from field to field and operator to operator. The Speed-lock feature prevents less experienced users from operating the ABI Force faster than a facility manager establishes. This feature provides improved safety and ease of use for all operators.

Total Control

The patented spring system allows for up to 1,000 lbs of down pressure, but builds in forgiveness, so the Z-23 can power through some of the toughest jobs. With unparalleled pitch-control and hydraulic rear lift control, the ground engagement components mimic the movement of the machine so you can get finishing, feathering, and sifting results.

Electronic Fuel Injected (EFI) Engine

Each Z-23 comes equipped with a 25HP electronic fuel injection engine standard. An EFI system utilizes advanced computer controls teamed with a high-pressure fuel delivery system to provide peak power and fuel efficiency. The Force now starts like a car with no carburetor issues, has increased fuel efficiency, and starts easily in the cold!

Beltless Hydrostatic Drive System

Typically, machinery of this size runs off a Hydraulic Drive System geared to a belt and pulley drive shaft. The lifetime of a belt can be unpredictable as belts frequently break. Each Z-23 is plumbed standard with Dual Stacked HydroGear Variable Displacement Pumps and Fixed Displacement Wheel Motors, avoiding the need for belts entirely.

Heavy-Duty 2-Stage Air Filter

Every ABI Force Z-23 comes standard with a Heavy Duty 2-Stage Cyclonic Canister Air Filtration System. A 2-stage filtration system makes sure that your engine pulls clean air, acting as your engine’s shield in dusty conditions. Keep the filter clean to see improved engine performance, fuel efficiency, and extended engine life

Specifications

Force for Infield Grooming
Engine
Power	Kohler® Command Pro 25 hp EFI V-Twin OHV (17.2kW) \| 747cc \| 4-Cycle Air Cooled \| Gasoline \| Model ECH740
Air Filter	Heavy Duty 2-Stage Cyclonic canister air filtration system
Fuel	6 gallon/22.7125 liter capacity with fuel gauge \| Unleaded gasoline
Electrical	20 amp Regulated alternator \| 350 CCA at 0 degrees - battery
Drive System
Drive	Hydrostatic zero-turn \| HydroGear variable displacement pumps & fixed displacement wheel motors
Speed	Forward 0-10 mph; Reverse 0-4 mph
Braking	Dynamic braking via hydrostatic transmission \| Integrated parking brake
Chassis
Tires & Wheels	Front (Air): 13 x 6.50-6, Rear: 24 x 12.00-12 (Air or Optional Tweel)
Frame Construction	Rugged tube steel
Mid-Mount System	Independent hydraulic lift & pitch controls with adjustable & lockable spring-loaded down force with Responsive Variable Force (RVF) technology.
Rear-Mount System	Hydraulic lift control with articulation
Towing Capacity	1-1/4" receiver - 2,000 lbs. towing capacity at slow speed on flat and open ground only! Never tow anything on an incline!
Operator Experience
Operator Experience	Cushioned knee pad & spring cushioned standing platform \| Cushioned zero-turn steering levers \| Dash indicator lights \| USB power port \| Cup holder \| Machine mount assistance bar
Environmental
Environmental	EPA & CARB compliant
Weight
Base Unit Weight	1,300 lbs.
Dimensions
Dimensions	93" L x 56" W x 57"H \| 72"-84" With optional rear attachments
Warranty
Limited Warranty	36-month machine and accessories/36-month unlimited hour commercial warranty (refer to manual)
