Z-23 for Laser Grading

Zero-Turn
Laser Grading

Precise Finish Laser Grading

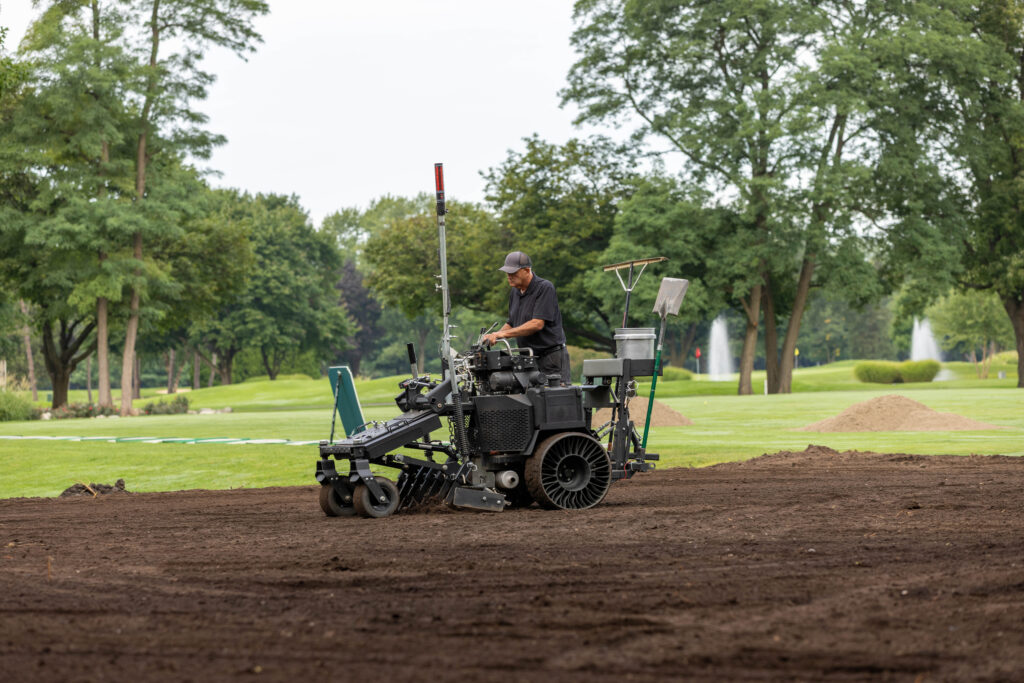

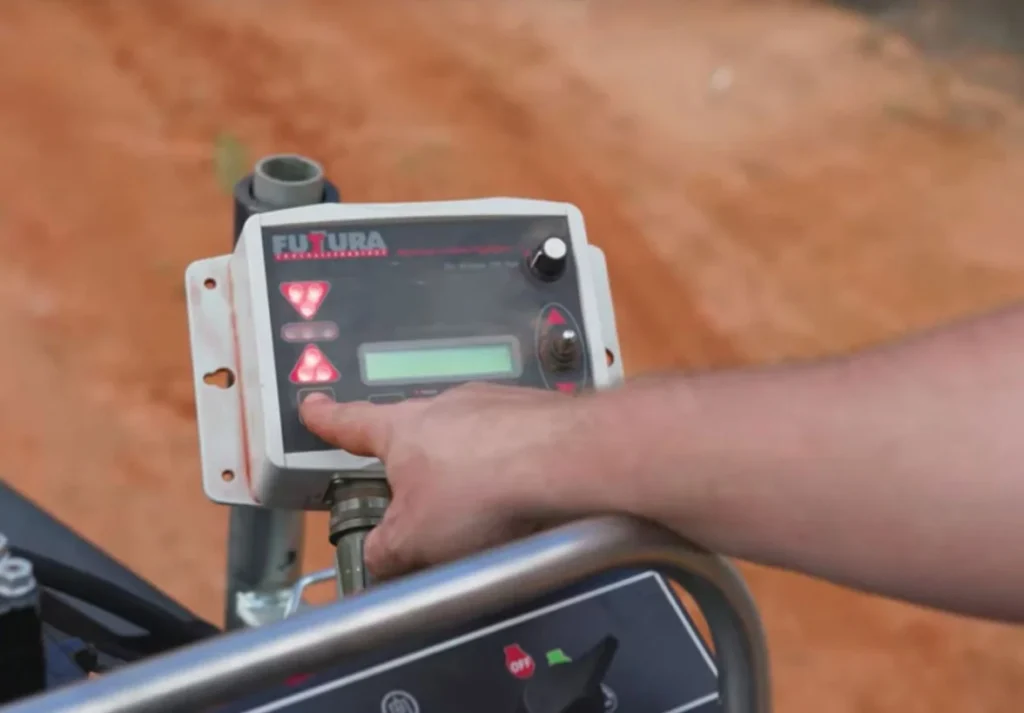

The Z-23 is the world’s first and only stand-on zero-turn laser grading machine, with accuracy plus-or-minus an eighth of an inch! (0.125 inch, 3.175mm) This patented, fully automatic laser grading system delivers unprecedented affordability and finish-grade accuracy to the sports turf and flatwork industries. The Z-23 has a dramatically smaller and lighter footprint than other laser grading machines, enabling laser finish-grading in tight areas and on materials where over compaction of the soil
is unacceptable.

World-Class Results for Every Field

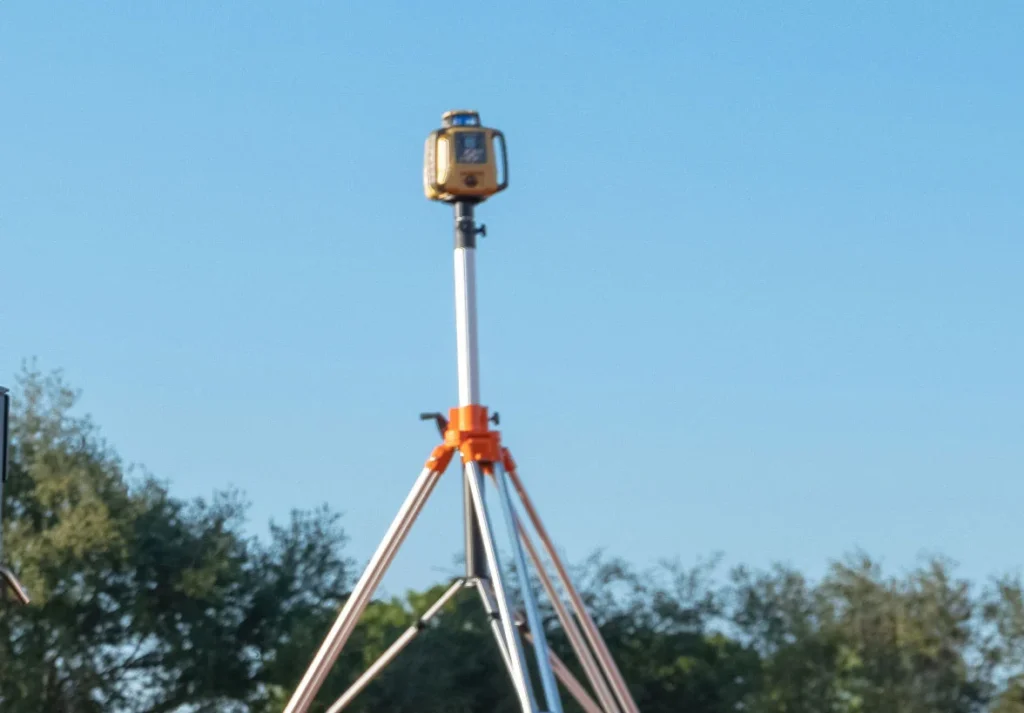

Attachments

Features

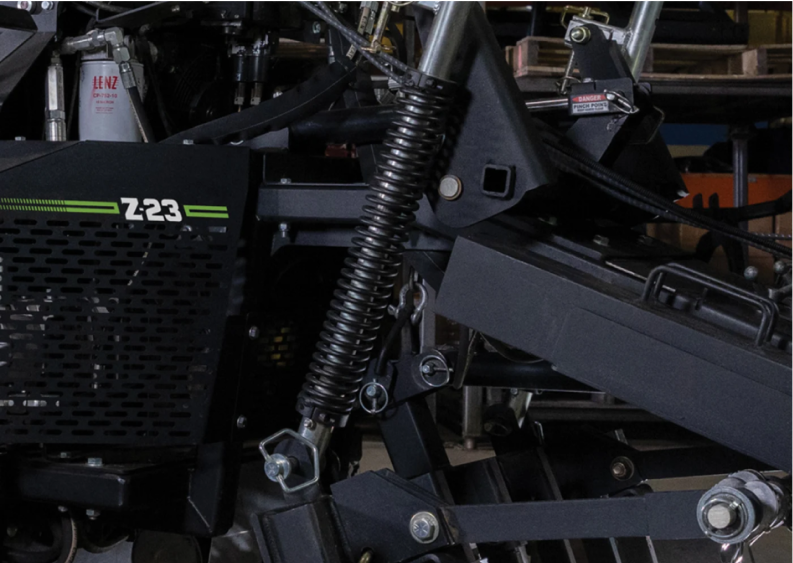

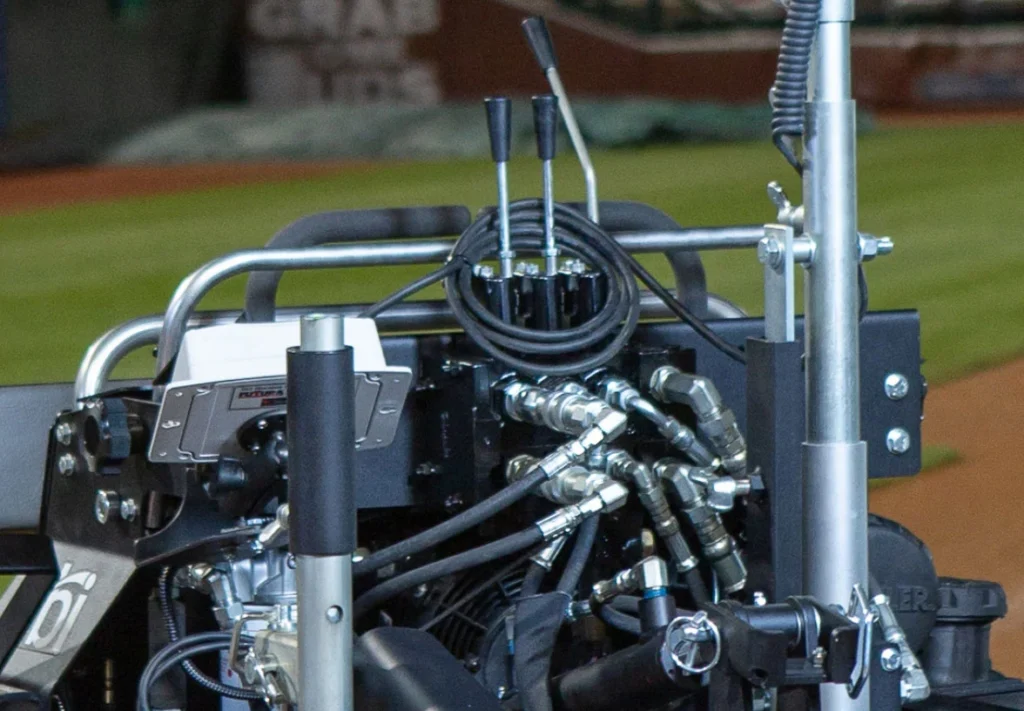

Responsive Variable Force Technology (RVF)


Located at the mid underbelly of the ABI Force, the patented RVF Technology hydraulically controls mid-mounted ground-engaging attachments with lift, variable down pressure, and pitch adjustments.

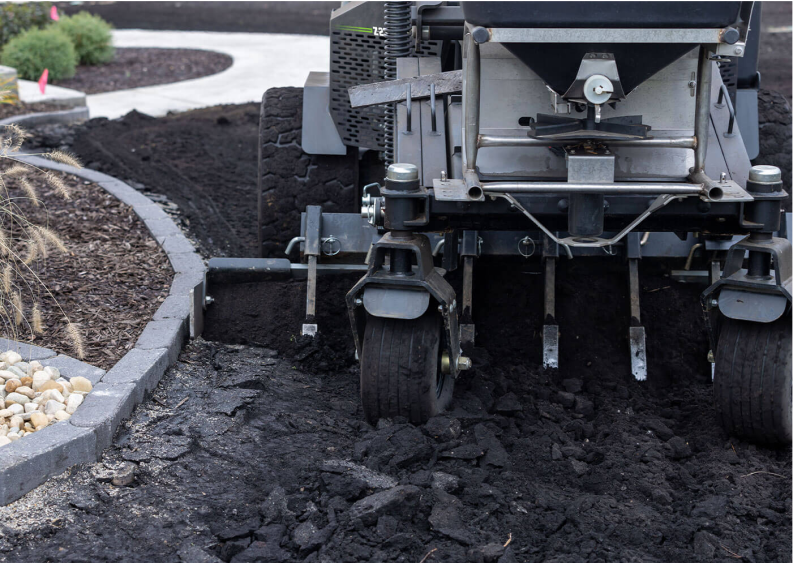

Zero-Turn Functionality

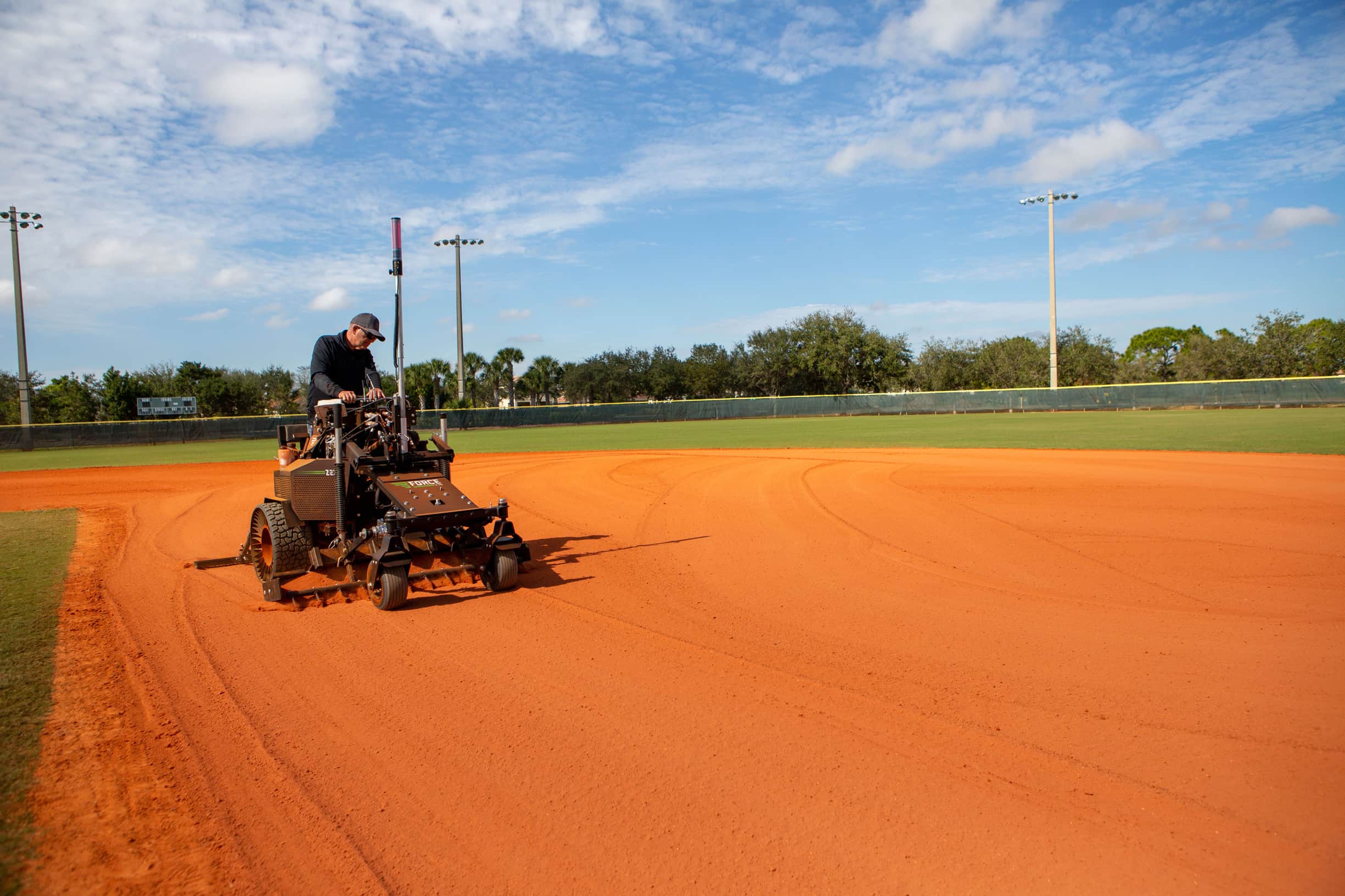

The zero-turn capability of the Z-23 means that you can get in tight spots, around edges, and closer to tree lines than with a skid steer or other heavier duty equipment. For infield grooming and seedbed prep, you want that light footprint and maximized nimbleness.

Speed Lock + Depth Lock


The Depth-lock feature prevents mid-mount attachments from going any deeper into the infield surface than intended. This feature makes it easy to ensure consistent preparation from field to field and operator to operator. The Speed-lock feature prevents less experienced users from operating the ABI Force faster than a facility manager establishes. This feature provides improved safety and ease of use for all operators.

Total Control


The patented spring system allows for up to 1,000 lbs of down pressure, but builds in forgiveness, so the Z-23 can power through some of the toughest jobs. With unparalleled pitch-control and hydraulic rear lift control, the ground engagement components mimic the movement of the machine so you can get finishing, feathering, and sifting results.

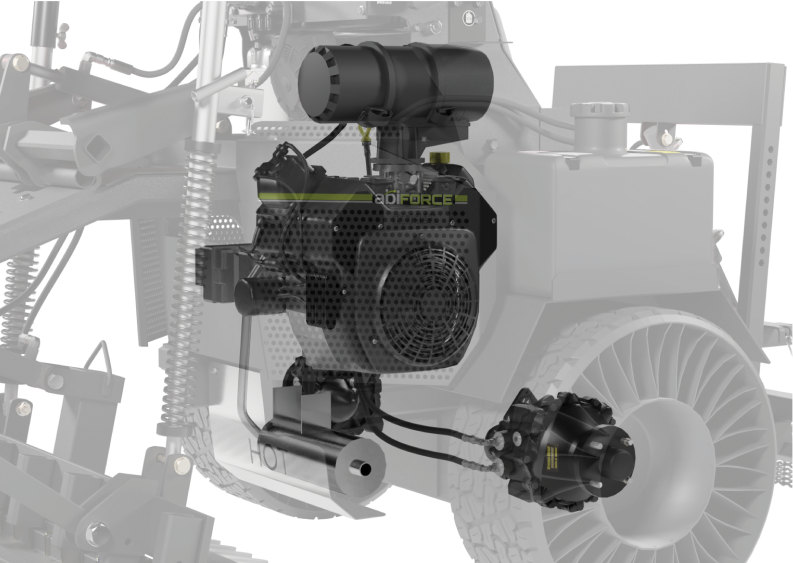

Electronic Fuel Injected (EFI) Engine


Each Z-23 comes equipped with a 25HP electronic fuel injection engine standard. An EFI system utilizes advanced computer controls teamed with a high-pressure fuel delivery system to provide peak power and fuel efficiency. The Force now starts like a car with no carburetor issues, has increased fuel efficiency, and starts easily in the cold!

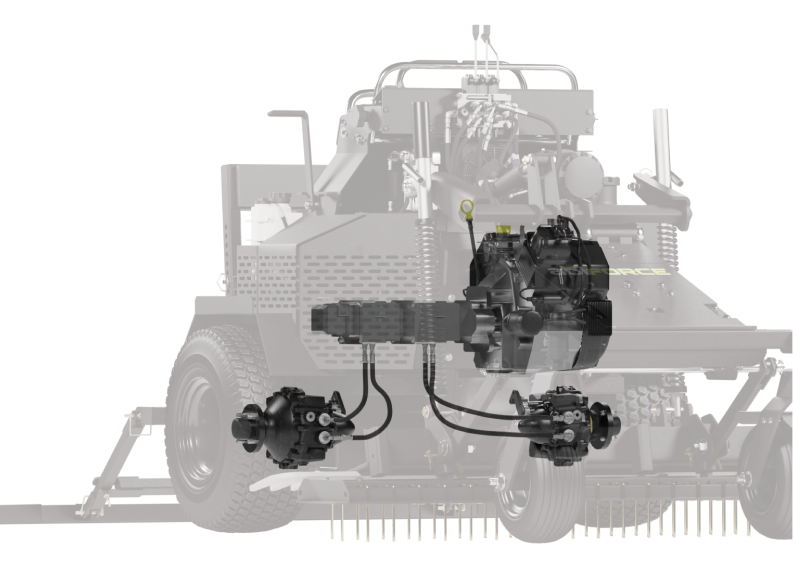

Beltless Hydrostatic Drive System


Typically, machinery of this size runs off a Hydraulic Drive System geared to a belt and pulley drive shaft. The lifetime of a belt can be unpredictable as belts frequently break. Each Z-23 is plumbed standard with Dual Stacked HydroGear Variable Displacement Pumps and Fixed Displacement Wheel Motors, avoiding the need for belts entirely.

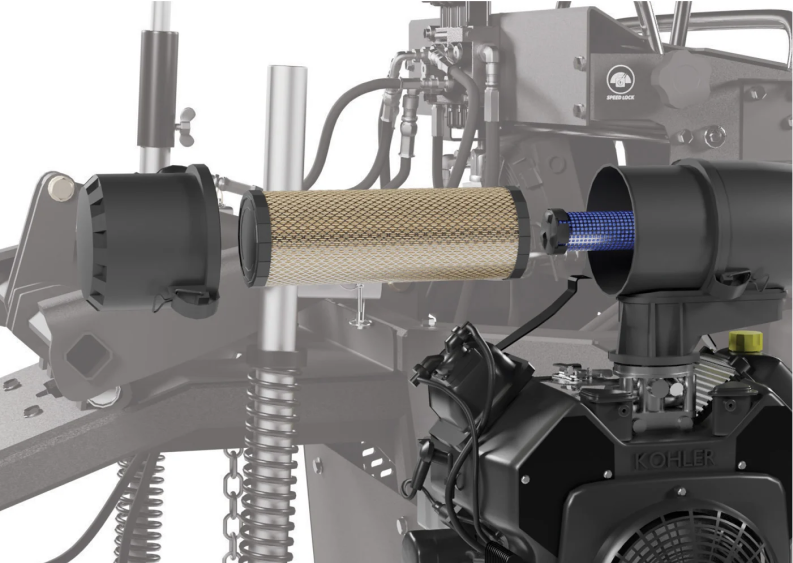

Heavy-Duty 2-Stage Air Filter


Every ABI Force Z-23 comes standard with a Heavy Duty 2-Stage Cyclonic Canister Air Filtration System. A 2-stage filtration system makes sure that your engine pulls clean air, acting as your engine’s shield in dusty conditions. Keep the filter clean to see improved engine performance, fuel efficiency, and extended engine life

Specifications

Force for Laser Grading

Engine

PowerKohler® Command Pro 25 hp EFI V-Twin OHV (17.2kW) | 747cc | 4-Cycle Air Cooled | Gasoline | Model ECH740
Air FilterHeavy Duty 2-Stage Cyclonic canister air filtration system
Fuel6 gallon/22.7125 liter capacity with fuel gauge | Unleaded gasoline
Electrical20 amp Regulated alternator | 350 CCA at 0 degrees - battery

Drive System

DriveHydrostatic zero-turn | HydroGear variable displacement pumps & fixed displacement wheel motors
SpeedForward 0-10 mph; Reverse 0-4 mph
BrakingDynamic braking via hydrostatic transmission | Integrated parking brake

Chassis

Tires & WheelsFront (Air): 13 x 6.50-6, Rear: 24 x 12.00-12 (Air or Optional Tweel)
Frame ConstructionRugged tube steel
Mid-Mount SystemIndependent hydraulic lift & pitch controls with adjustable & lockable spring-loaded down force with Responsive Variable Force (RVF) technology.
Rear-Mount SystemHydraulic lift control with articulation
Towing Capacity1-1/4" receiver - 2,000 lbs. towing capacity at slow speed on flat and open ground only! Never tow anything on an incline!

Operator Experience

Operator ExperienceCushioned knee pad & spring cushioned standing platform | Cushioned zero-turn steering levers | Dash indicator lights | USB power port | Cup holder | Machine mount assistance bar

Environmental

EnvironmentalEPA & CARB compliant

Weight

Base Unit Weight1,300 lbs.

Dimensions

Dimensions93" L x 56" W x 57"H | 72"-84" With optional rear attachments

Warranty

Limited Warranty36-month machine and accessories/36-month unlimited hour commercial warranty (refer to manual)
